Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

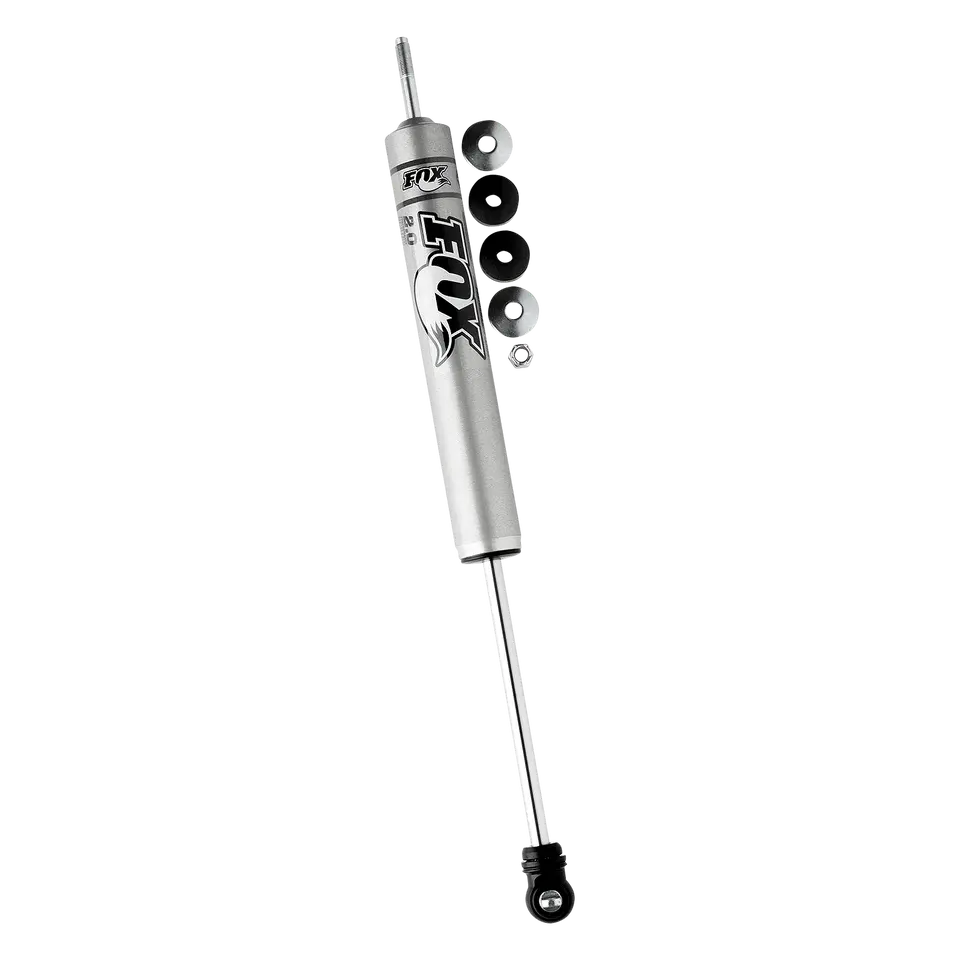

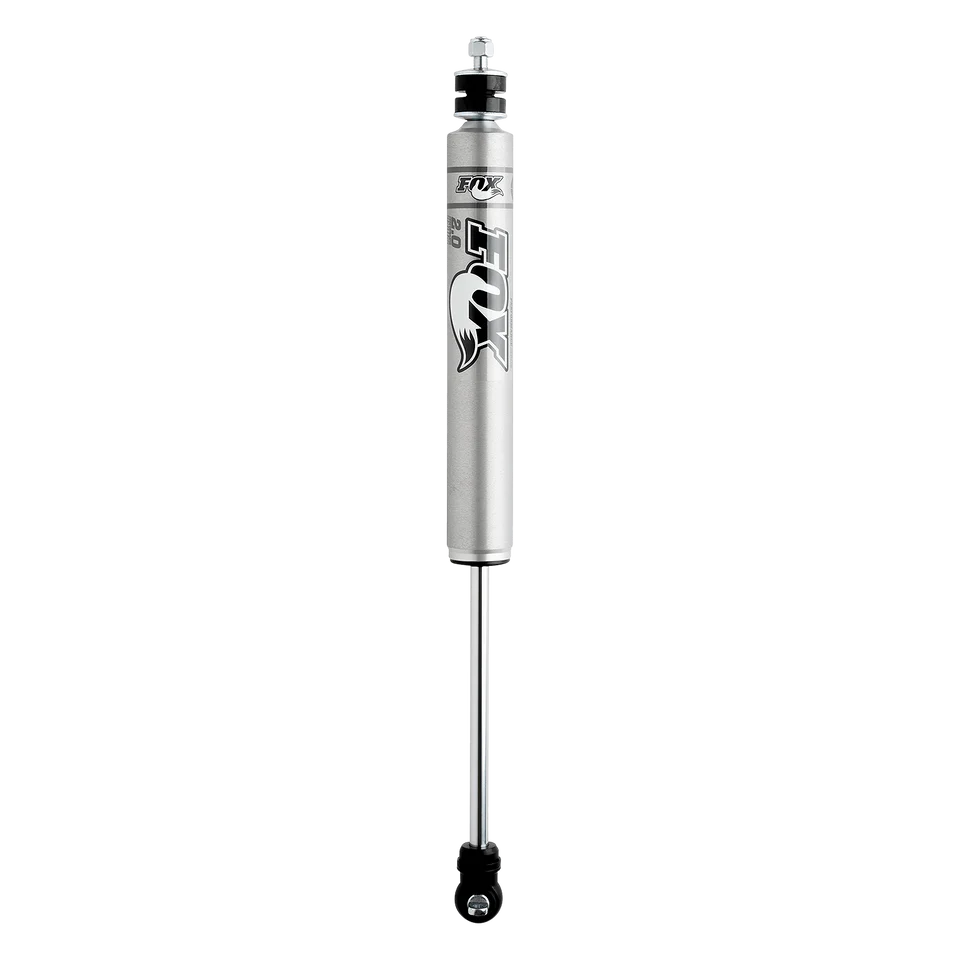

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 25.48
- Compressed - 15.85
- Travel - 9.63
- Top Mount - Stem Top
- Bottom Mount - BP1
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 1997 - 2006 | |
| Jeep | Wrangler | 2004 - 2006 |
| Brand | Fox |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
MV
Mr. V
Mar 24, 2021
★
★
★
★
★
Good quality parts, much stronger than stock
D
David
Nov 23, 2025
★
★
★
★
★
First of I just want to say Great customer service korby Has helped me from the start and has not let me down! Reached out to him again today and he was able to warranty some parts out for me.
As far as the quality of the parts.. excellent! The build quality is great. I can definitely tell a
Difference from the cheap oem rear control arms to these and the pan hard bar.
Color, From what I can tell it’s super durable been through a few mud holes on top of the daily road grime and after a quick wipe they still pop!
Overall I recommend. Customer service is everything for me and it’s definitely there at Core 4x4.
PG
Paul Griffin
Feb 21, 2026
★
★
★
★
★
Great long arm kit with everything else I needed as well! They worked with me to ensure that I was getting an upgraded components kit just like I wanted. Fast shipping with some of the best packaging that I have ever seen. Nothing was scratched or missing and this kit is even more impressive than the videos or website can show. Powder coating looks great with no issues.
I would highly recommend CORE 4x4 to anyone looking for a great quality kit.
VK
Victor Keele
Sep 24, 2025
★
★
★
★
★
Great customer service. I got my front upper and lower control arms and hardware on Friday afternoon. It didn’t come with instructions so I called Core 4X4 and they immediately e mailed me the instructions. Also, the kit I got had the spacers missing so I called. It was late Friday by thus time but they took care of the issue first thing Monday morning and I got the spacers on Tuesday. Great company.
EA
Eric Ahonen
Mar 24, 2021
★
★
★
★
★
Awesome control arms! My mechanic said “ your Jeep is pretty much bulletproof now.” And I just got the tier 1 arms! The people at the core 4x4 shop were really nice too. They were running behind on shipping, (which is understandable) so I decided to go pick it up because it was only an hour drive. They gave me a free $60 hardware kit for the inconvenience. Thanks core 4x4! You guys are awesome!!
C
caleb
Mar 24, 2022
★
★
★
★
★
Absolutely a great company. Ordered rear lower control arms with hardware but when i got it the hardware wasn't there but they sent it out right away and got a free t-shirt! Highly recommend.
GN
Glenn Nowosad
Jan 22, 2026
★
★
★
★
★
I just finished installing the Peak 2.0 Front Suspension system with the Core 4x4 Blue Tacoma Rear Suspension system on my 2024 TRD Offroad Premium Tacoma. The two upgraded suspension systems really made a difference in how the ride feels, whether we’re off-road or on the road. A big thank you to Korby and the team at Core 4x4 for their support and for getting the shipping sorted out so quickly!
DN
Devan Nelson
Mar 25, 2019
★
★
★
★
★
Had a great experience with Core 4x4, I desperately needed a custom track bar and found out just a couple days before Easter Jeep Safari. Spence was a huge help and made it happen with plenty of time to spare. Their parts are top notch!
JS
Jon Stempien
May 27, 2025
★
★
★
★
★
Big thanks to Corby at core 4 x 4 outstanding customer service I like to thank them or 4 x 4 for helping me Well-made product in the United States recommend core 4 x 4 for all jeep Owners that like the four wheel
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Fox |
