- Features - Performance tuned for vehicle specific application; Aluminum body dissipates heat faster than steel; IFP separates oil from high-pressure nitrogen gas; Black anodized cnc machined aluminum components.
- Series - Performance
- Travel - 8.65
- Body - 2.0" Impact extruded and cnc machined 6061-T6 clear anodized aluminum-one piece body resists rust over time.
- Shaft - 1/2" Hard chrome plated heat-treated alloy steel.
- Piston - Race-developed high-flow piston design.
- Valving - Application specific valving to maximize performance.
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended Length - 24.25
- Compressed Length - 15.6

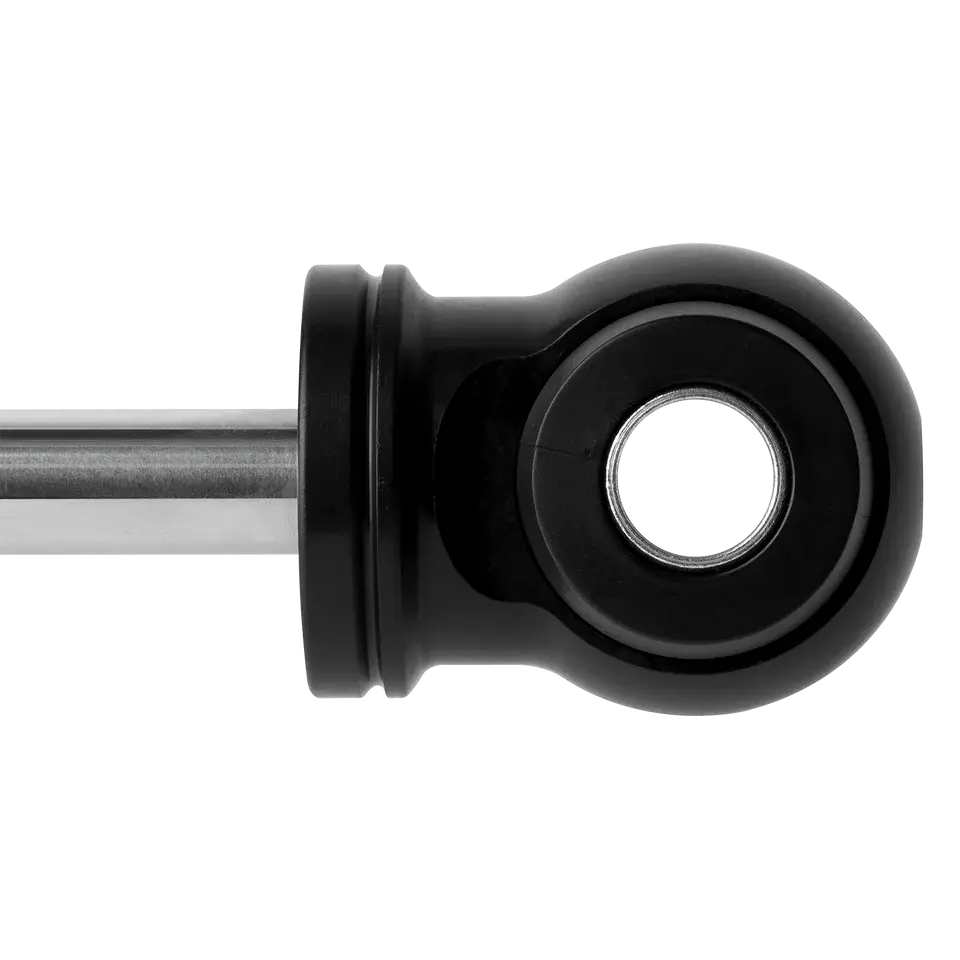

- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 2500 | 2003 - 2007 | |
| Ram | 2500 | 2008 - 2009 | |
| Ram | 2500 | 2010 - 2013 | |
| Ram | 3500 | 2003 - 2007 | |
| Ram | 3500 | 2008 - 2009 | |
| Ram | 3500 | 2010 - 2012 | |
| Ram | 3500 | 2010 - 2013 | |
| Ram | 3500 | 2013 - 2024 |

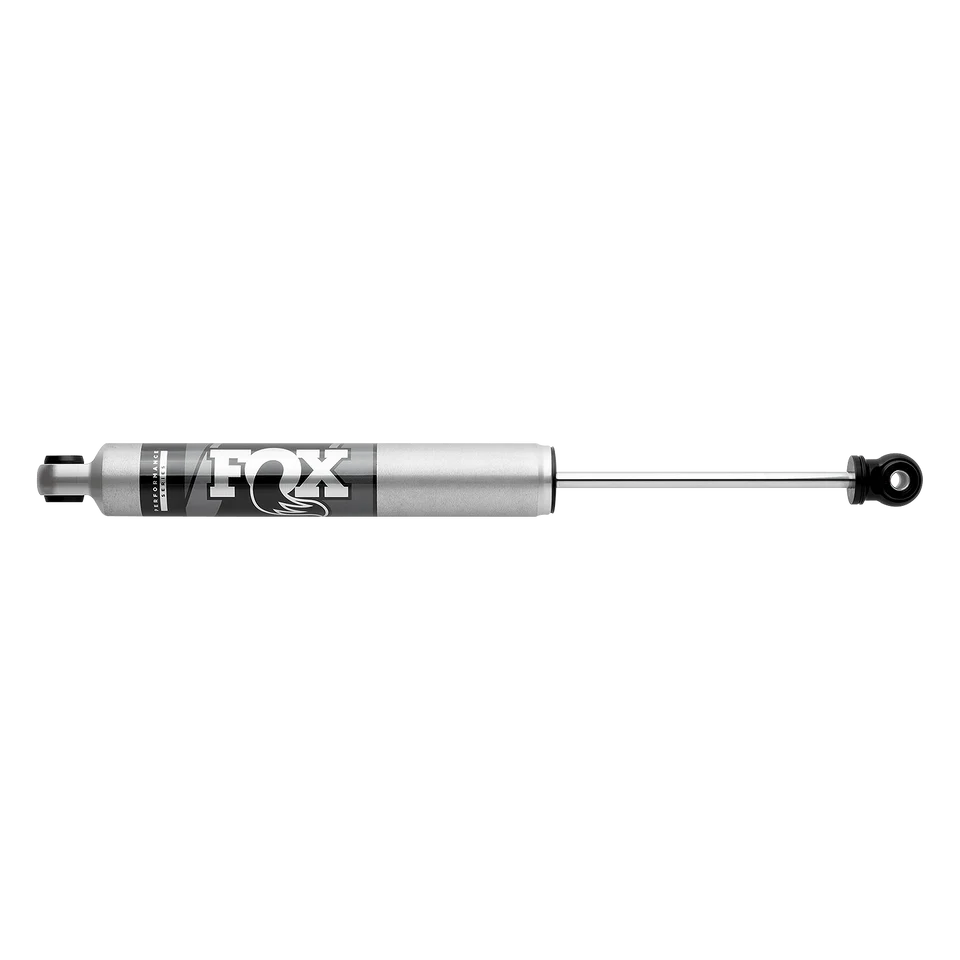

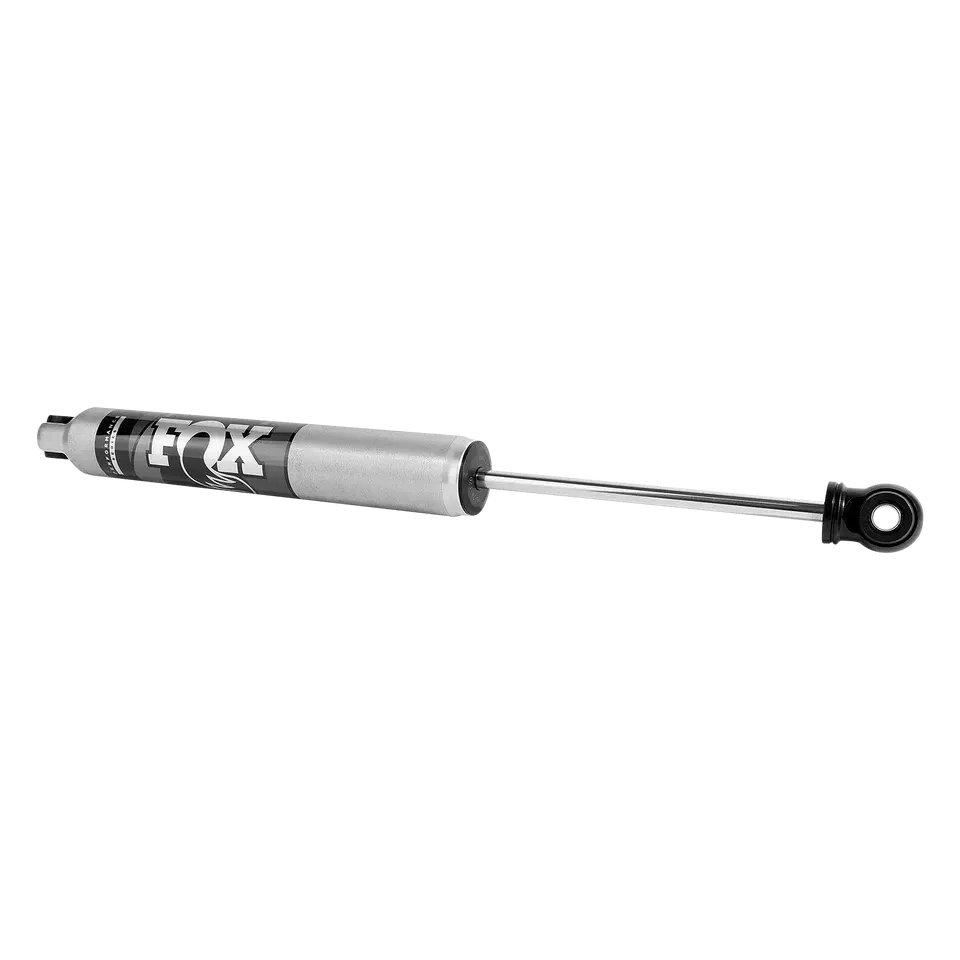

| Vehicle | Ram HD 3500 (13–24) or Ram HD 2500 (03–07) or Ram HD 2500 (08–09) or Ram HD 2500 (10–13) or Ram HD 3500 (03–07) or Ram HD 3500 (08–09) or Ram HD 3500 (10-12) or Ram HD 3500 (10-13) |
| Brand | Fox |
