Product Details
This kit includes 1 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2007–2018 |
Vehicle Fitment: Jeep Wrangler JK 07-18 – Enhances articulation, improves handling, and delivers superior off-road performance.
CORE Advantage: Johnny Joints at both ends provide insane articulation and bind-free movement, maximizing suspension travel and durability.
Adjustability: Fully adjustable for 0–6” lifts, allowing precise axle re-centering, pinion angle tuning, and caster correction for better control.
Construction: Built from 1.75” OD DOM tubing with a 5/16” wall, powder-coated for superior strength, durability, and corrosion resistance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States. You break it, we replace it.
Built With

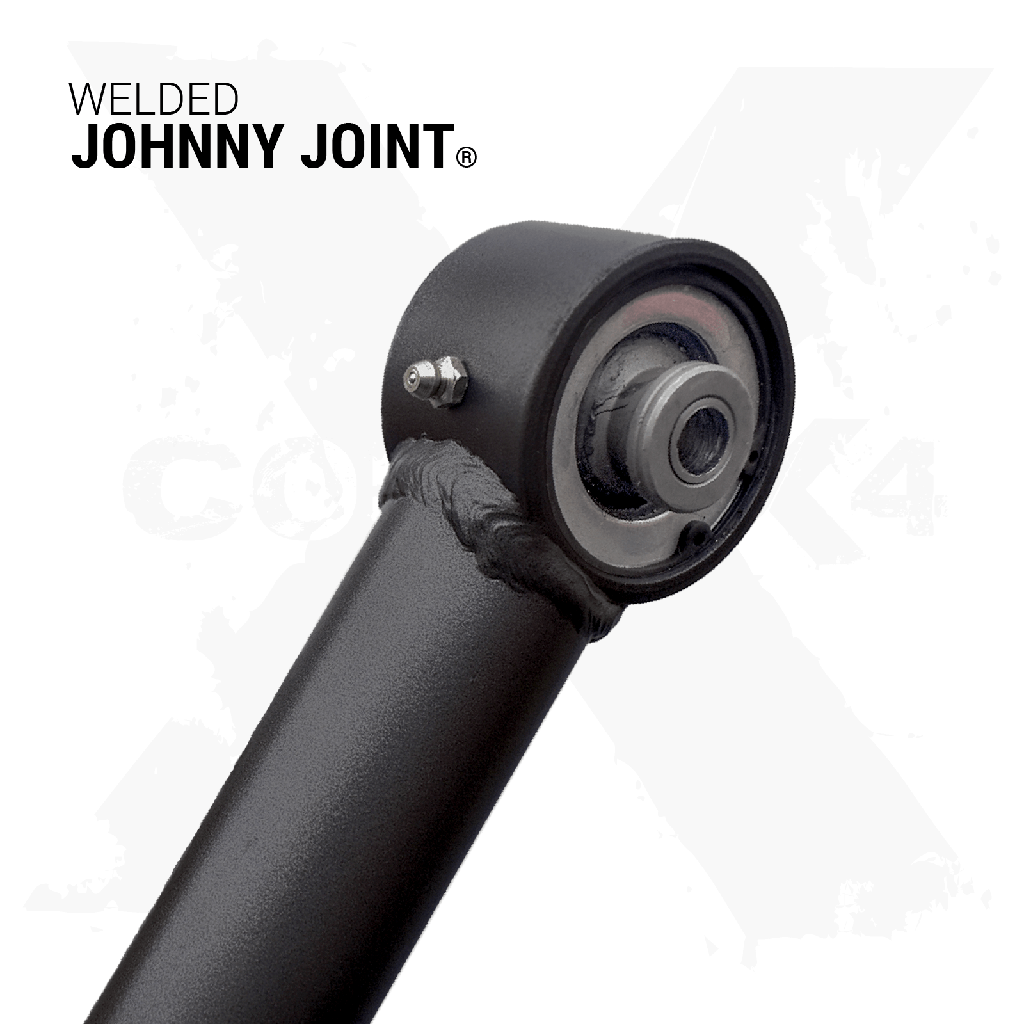

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Construction & Materials
Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
| Vehicle | Jeep Wrangler JK / JKU (07–18) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Lift Size | 0" — 6" or 6"+ |
| Hardware | No Hardware or Complete Kit |
| Placement on Vehicle | Front Lower, Front |
| Mounting Style | Bolt-On |
Performance and Durability

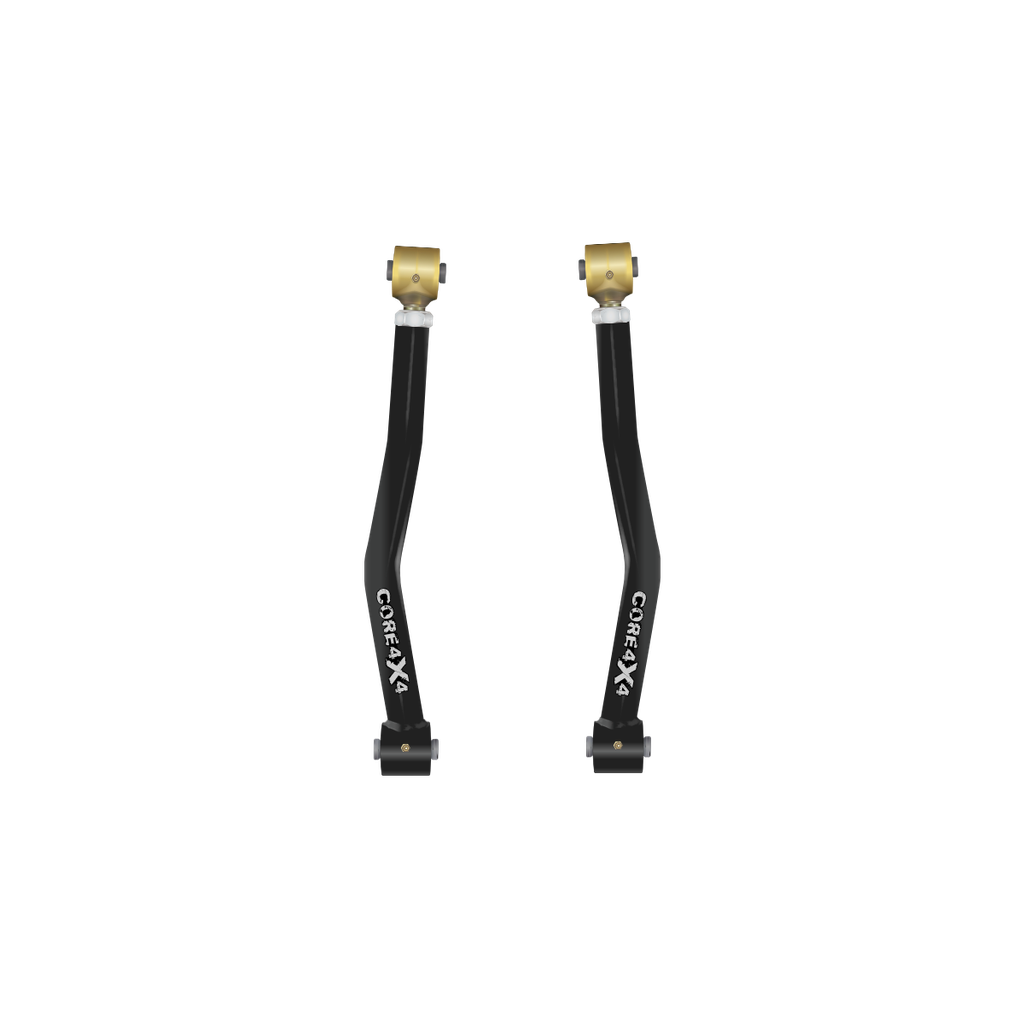

Take your off-road adventures to new heights with the Crawl Series Front Lower Control Arms. Designed for Jeep Wrangler JK model years 2007-2018, these control arms deliver superior off-road flexibility and impeccable on-road handling, offering a substantial upgrade over stock and aftermarket alternatives.
Superior Design
Crafted from robust 1.75” OD DOM Tubing with a 5/16” wall thickness, these Front Lower Control Arms are built to withstand extreme terrains and challenging conditions. Equipped with Johnny Joints at both ends, these control arms provide smoother movement, exceptional durability, and increased articulation compared to traditional bushings.
Optimal Adjustability
Designed with off-road enthusiasts in mind, our Front Lower Control Arms feature adjustability to accommodate lifts from 0 to 6 inches, allowing precise alignment correction and re-centering of your front axle. This flexibility ensures your suspension setup meets your specific needs. For lifts beyond 6 inches, additional options and guidance are available upon request.
Dual-Stage Powder Coating
Every control arm undergoes a meticulous two-stage powder coating process to maximize durability and corrosion resistance. The initial zinc primer base coat acts as a shield against rust and environmental factors, while the top coat, available in 10 custom colors, provides additional protection and personalization for your vehicle.
Proudly Made in the USA
At CORE 4X4, we take pride in producing premium-quality suspension components in our Orem, UT facility. Our commitment to American manufacturing ensures superior craftsmanship, rigorous quality control, and support for local industries.
Simple Installation
Our Crawl Series Front Lower Control Arms are designed for straightforward installation using factory hardware.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, and any add-on options, then add to cart — you’ll confirm your lift height at checkout. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
