12pc Complete Kit

Adjustable control arms + track bars · fits 0"–6"+ lift

$ 2,263.76 2263.76 USD $ 2,572.45

$ 2,572.45

Build Season · Save 12% — $309 off · ends Aug 28

More ways to pay ▾

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate Delivery date by ZIP
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
COLOR Pick yours
100% bolt-on no welding MADE IN USA · Orem, Utah Expert Support 100K+ Community
Free mounting hardware included — a $100 value
Adjustment Type
TJ/LJ Rear Track Bar Bracket
1
Joints Johnny Joints both ends
Tubing 1.75" OD lowers / 1.50" OD uppers 5/16" wall DOM
SKU: CRL-J-TJLJ-K12
https://jerdev.core4x4.com/web/image/product.template/1657/image_1920?unique=df113cf

12pc Complete Kit

Adjustable control arms + track bars · fits 0"–6"+ lift

SKU: CRL-J-TJLJ-K12
Pick your vehicle to confirm fit
Google 4.8 ★★★★★ (161 reviews)

$ 2,263.76 2263.76 USD $ 2,572.45

$ 2,572.45

Build Season · Save 12% — $309 off · ends Aug 28

More ways to pay ▾

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Adjustment Type
  • TJ/LJ Rear Track Bar Bracket
  • Note to Core4x4:

Select Color to see price and add to cart.

Free mounting hardware included — a $100 value
Order today — ships within 1–3 business days
Enter ZIP for arrival estimate Delivery date by ZIP
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Core 4x4 Manufactured

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Product Details

Ultimate Suspension and Steering Upgrade

Elevate your Jeep Wrangler TJ or LJ (1997-2006) with the Crawl Series Complete Kit With Steering, a comprehensive suspension and steering solution designed for off-road adventurers and daily drivers alike. This all-inclusive kit provides unmatched durability, superior articulation, and advanced adjustability while enhancing on-road comfort and conquering rugged trails with confidence.

Key Features and Benefits

  • Complete suspension and steering solution – Includes eight control arms, front and rear track bars, and the RockJock Currectlync Steering Upgrade for precise alignment, axle centering, and steering control.
  • Unmatched articulation – Johnny Joints at both ends of every control arm provide superior flexibility and durability for tackling the toughest off-road terrains.
  • Lift compatibility – Fully adjustable to accommodate lifts from 0 to 6 inches, ensuring optimal suspension geometry and handling.

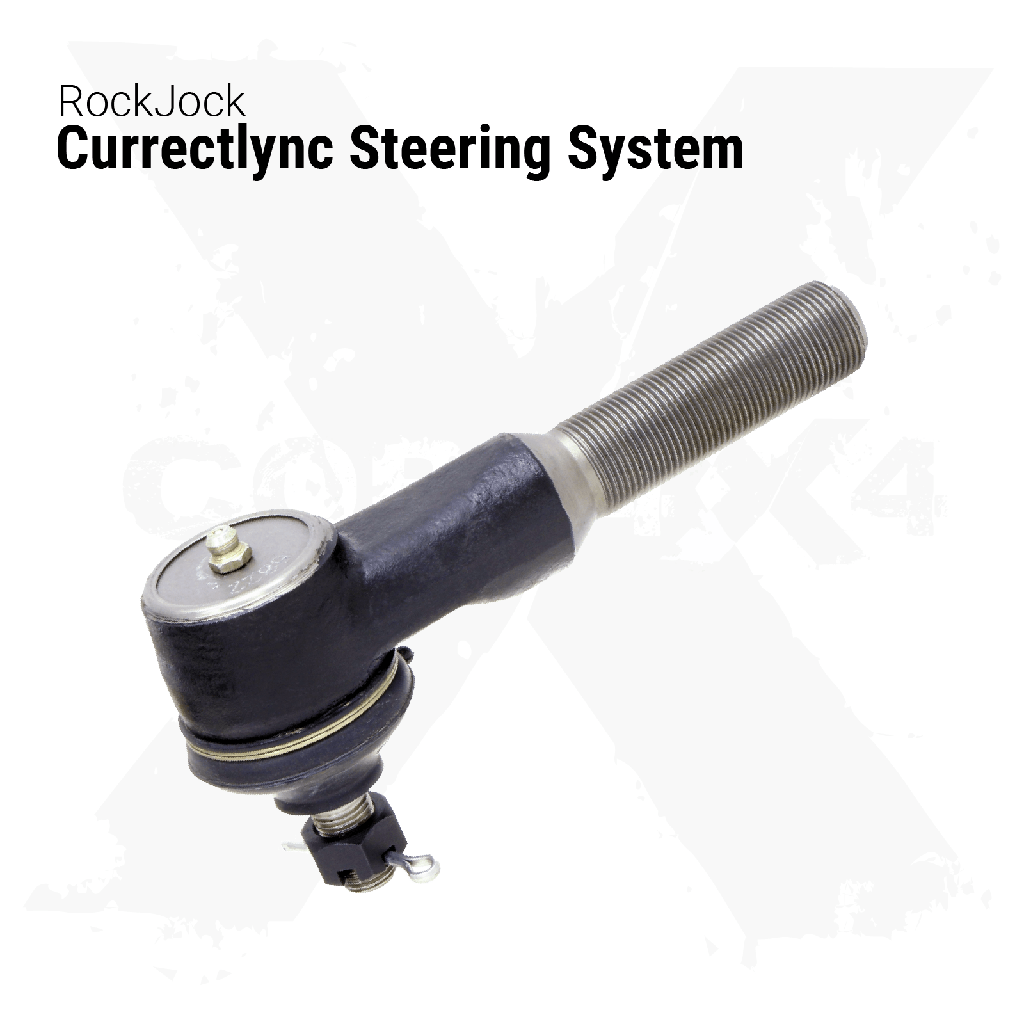

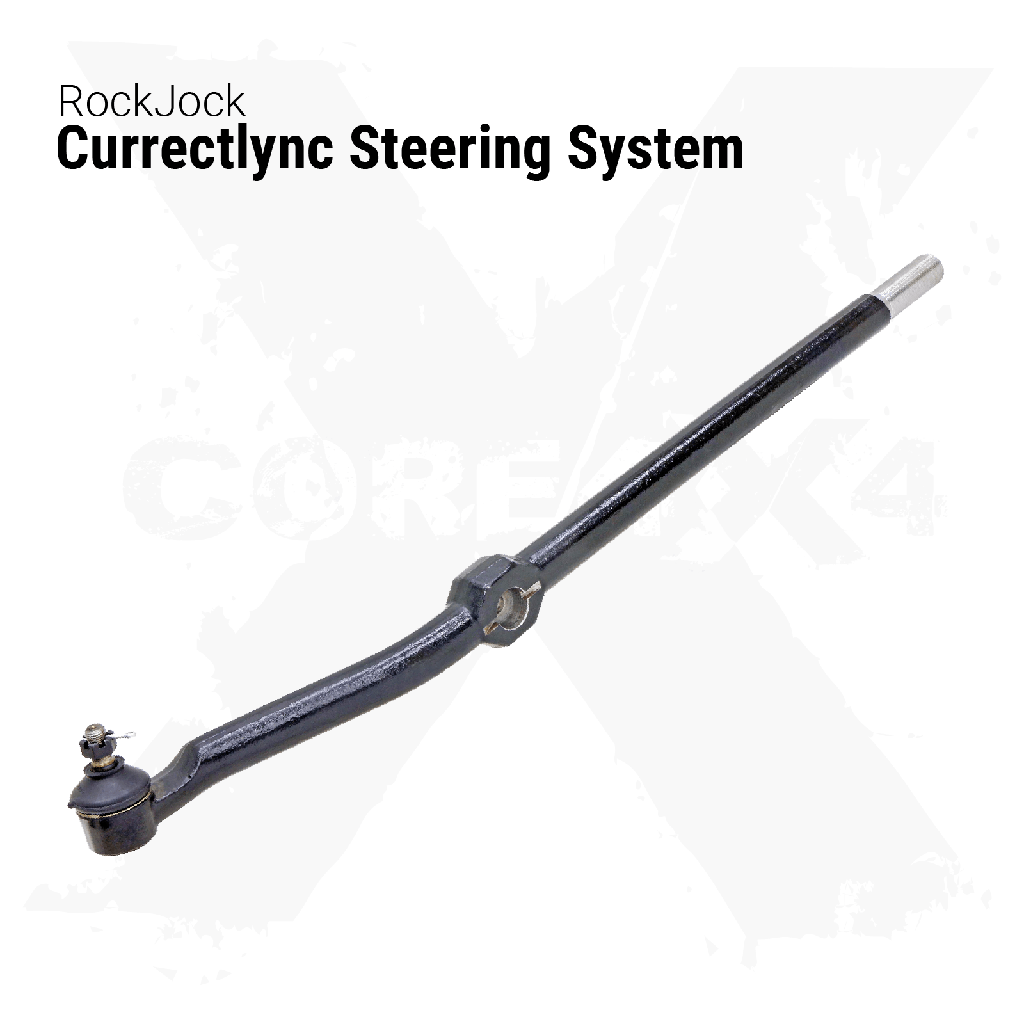

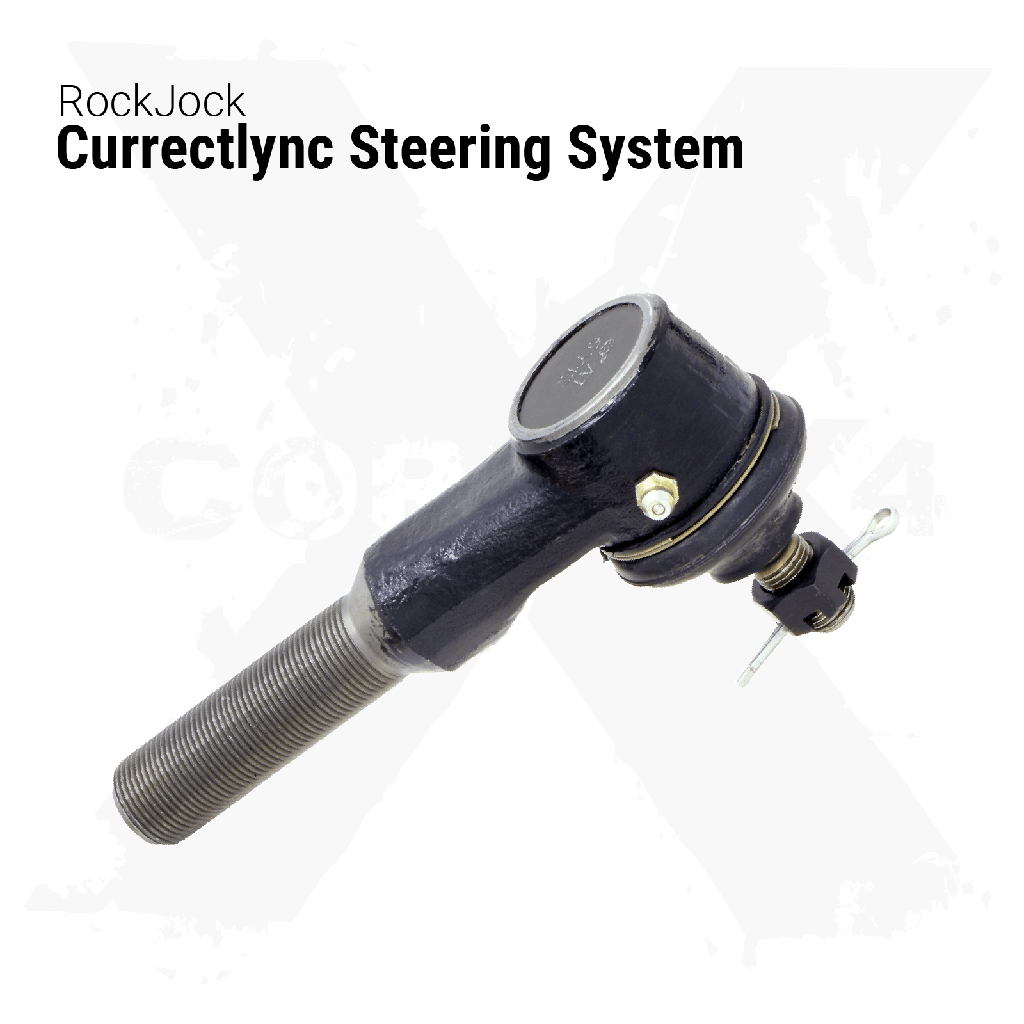

  • Durable steering system – The RockJock Currectlync Steering Upgrade features oversized 1.25-inch forged tie rod ends for unbeatable strength and control on challenging trails.

Double Adjustable Upgrade

Upgrade to double adjustability with left- and right-hand-threaded joints on all control arms. This optional feature allows for on-the-vehicle fine-tuning of axle centering, caster, and pinion angles, making suspension adjustments seamless and efficient.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for a hassle-free installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or stubborn bolts.



  • Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – A complete suspension and steering upgrade that enhances articulation, axle alignment, and handling, ensuring precise control in off-road conditions and smooth on-road stability.

  • CORE Advantage: Featuring Johnny Joints at every connection and the Rock Jock Currectlync Steering Upgrade, this kit delivers unmatched articulation, steering precision, and durability for superior off-road performance.

  • Adjustability: Designed to accommodate lifts from 0 to 6 inches, allowing precise tuning of caster, pinion, and axle alignment. Optional double adjustability enables on-vehicle fine-tuning for effortless suspension dialing.

  • Construction: Built with heavy-duty DOM tubing and oversized forged tie rod ends, this kit withstands extreme impacts. A U-bracket on the front uppers integrates with factory bushings while maintaining strength.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Front Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Wrangler 1997 - 2006
Jeep Wrangler 2004 - 2006

Construction & Materials

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Adjustment Type Single Threaded or Double Threaded
TJ/LJ Rear Track Bar Bracket No or Yes-(JKSOGS160)
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
