Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

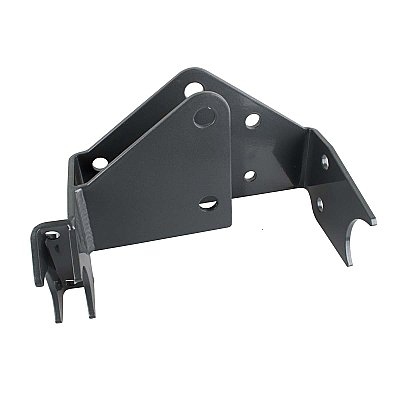

Product Details
Fits:
- 2007-2018 Jeep Wrangler JK / JKU
Benefits:
- Moves the axle-side track bar mount up, correcting steering geometry and improving road manners
- Raises the roll center, reducing body roll to improve handling
- Strengthens the factory mount through the durable, bolt-on design preventing premature failure the stock bracket is known for
- Relocates the factory or aftermarket steering stabilizer, getting it up out of harms way
Features:
- Precision laser cut from heavy-duty 3/16" steel, CNC bent for accurate fitment &
- Two-stage powder coat finish for maximum strength, durability, and corrosion resistance
- Steering stabilizer relocation mount to prevent unnecessary damage
- 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Notes:
- Must run drag link in high steer configuration, flipped above knuckle, to use this bracket.
- Adjustable front track bar recommended for lifts 3” or higher.
- Minimum of 3” bump stop spacing required.
- Minimum 4.75” wheel backspacing required to clear drag link in flipped position.
- This track bar bracket is not recommended for hydro assist applications; For hydro assist, use the SYN-8812-05 weld-on track bar bracket which includes hydro assist tabs
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2007 - 2018 |
| Vehicle | Jeep Wrangler JK / JKU (07–18) |
| Brand | Synergy |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
