Product Details
This kit includes 3 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 2500 | 2010–2013 |
Vehicle Fitment: Compatible with Dodge Ram 2500 10-12, this front suspension kit enhances stability, steering control, and alignment for heavy towing and hauling.
CORE Advantage: Eliminates death wobble, corrects caster, and provides rock-solid axle positioning for precise handling under extreme loads.
Adjustability: Fully adjustable for lifts up to 6", allowing precise caster correction, axle centering, and pinion angle adjustments to maintain proper suspension geometry.

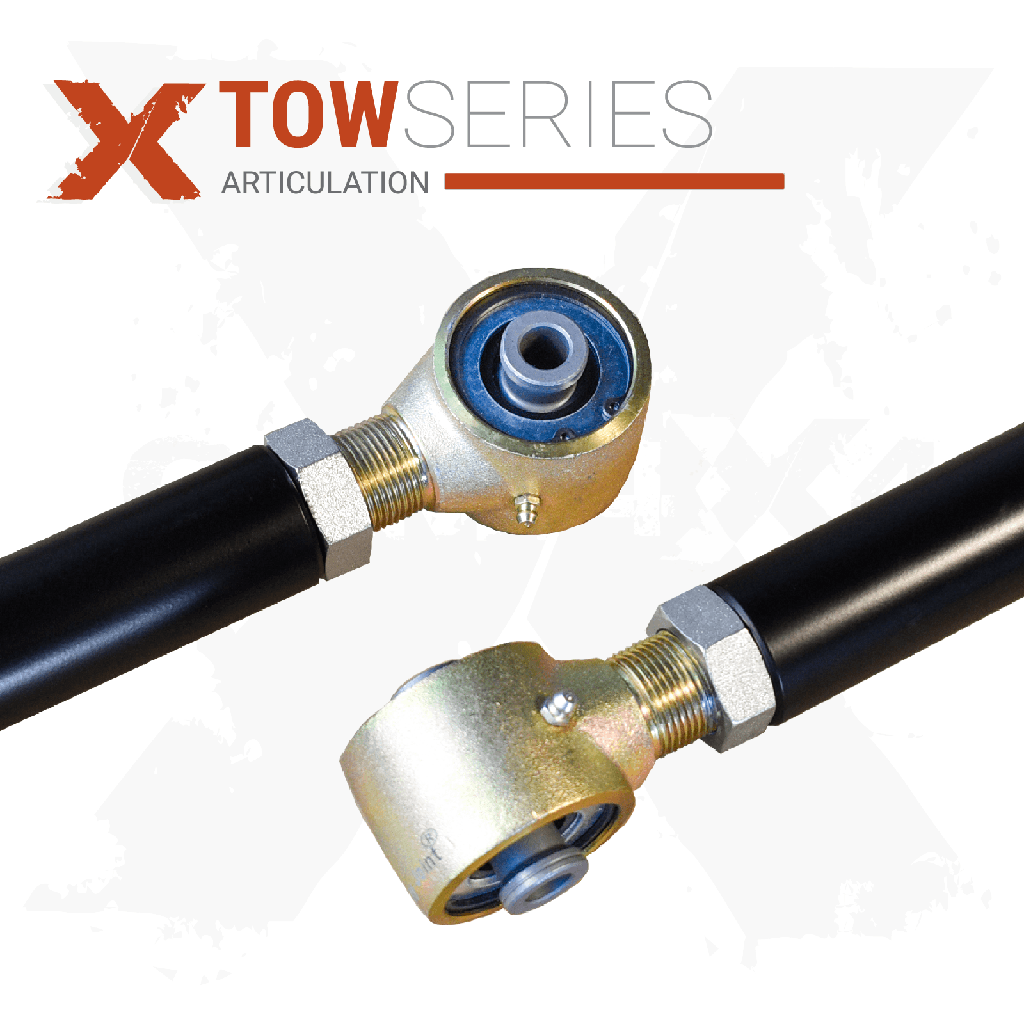

Construction: Control arms are crafted from 5/16” wall 1.75” OD steel, featuring Rock Jock Johnny Joints at both ends for superior articulation and durability. The track bar is built from 1.5” solid steel, ensuring precise axle alignment.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States. You break it, we replace it.

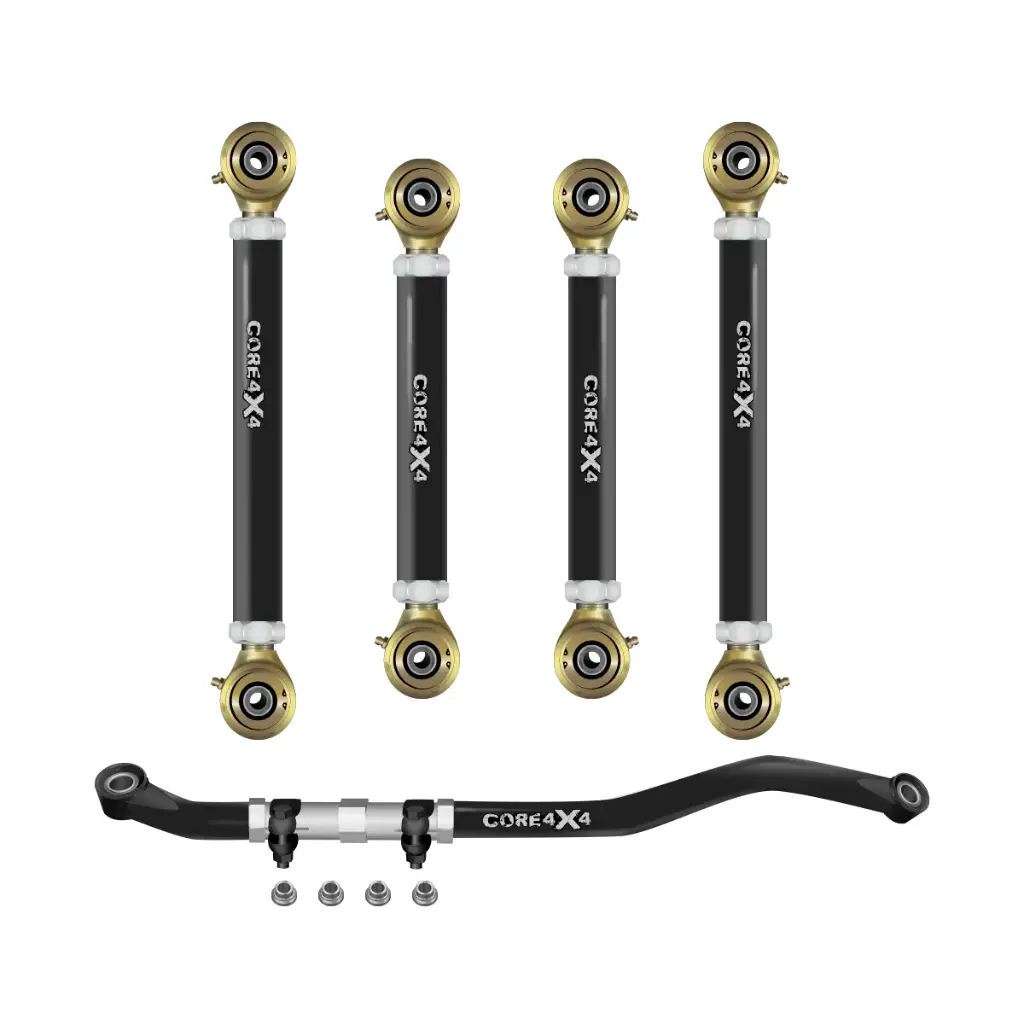

Built With
Front Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Front Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Front Track Bar Built With 1.5” Solid Cold Rolled Steel. Polyurethane Bushings on both ends of the track bar with a Chromoly turnbuckle.
Construction & Materials
Front Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Front Track Bar built with 1.5” Solid Cold Rolled Steel. Replaceable FK Bearings on both ends of the track bar with a Chromoly turnbuckle.
| Vehicle | Ram HD 2500 (10–13) |
| Brand | CORE 4X4 |
| Series | Tow Series |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | 0" — 6" or 6"+ |
| Arm Bend | No Bend or Inward Bend |
| Hardware | No Hardware or Complete Kit |
| Year Range | 10-13 |
| Placement on Vehicle | Front Upper, Front Lower, Front |
| Mounting Style | Bolt-On |
The Ultimate Front-End Upgrade for Heavy-Duty Towing Hauling
Maximize the performance of your Dodge Ram 2500 (2010–2013) with the Tow Series Adjustable Front Suspension Kit—a must-have upgrade engineered for towing, hauling, and extreme-duty applications. Stock suspension components struggle under heavy loads, leading to death wobble, wandering steering, and premature wear. This kit eliminates those issues by delivering increased strength, precision alignment, and rock-solid stability, ensuring superior control and durability under demanding conditions.
Key Features Benefits
- Eliminates Death Wobble Wandering Steering – Corrects caster and axle positioning, ensuring precise steering and eliminating common front-end issues associated with heavy towing and hauling.
- Maximum Strength for Heavy-Duty Applications – Built from 1.75” OD DOM Tubing with a 5/16” wall thickness, these control arms are designed to withstand high-load stress without bending or flexing.
- Fully Adjustable for Precision Alignment – Designed with left- and right-hand threads, all components allow for on-the-truck adjustments without removal, ensuring caster and axle centering for optimal handling and tire wear.
- Unmatched Durability with Rock Jock 4x4 Johnny Joints – Featuring greaseable, fully rebuildable Johnny Joints, these components reduce wear, eliminate bushing deflection, and provide long-term reliability in the toughest conditions.
Optional Inward Bend for Larger Tires
Running oversized tires? The optional inward bend upgrade provides extra clearance, preventing rubbing on the control arms. This is highly recommended for those running larger-than-stock tires to maintain full steering articulation.
Two-Stage Powder Coating for Maximum Protection
Each component undergoes a two-stage powder coating process to ensure long-lasting durability and corrosion resistance. A zinc primer base coat provides superior rust prevention, while a durable topcoat, available in 10 color options, allows you to match your truck’s build.
Made in the USA
Manufactured in Orem, UT, the Tow Series Front Suspension Kit is proudly built in the USA, ensuring top-tier craftsmanship, strict quality control, and unmatched reliability.
Final Thoughts
The Tow Series Adjustable Front Suspension Kit (TOW-D-25-2010-K5) is the ultimate upgrade for Ram 2500 owners who demand exceptional strength, precise alignment, and long-term durability. Whether you’re hauling trailers, towing heavy loads, or navigating demanding job sites, this kit provides the control and stability needed to tackle any challenge with confidence. Upgrade today and take full control of your Ram 2500’s suspension for unmatched performance and reliability!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, and any add-on options, then add to cart — you’ll confirm your lift height at checkout. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
