Product Details
This kit includes 2 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 3500 | 2003–2007 |
Vehicle Fitment: Compatible with Dodge Ram 3500 03-07, this front control arm set enhances stability, caster correction, and axle positioning for heavy towing and hauling.
CORE Advantage: Eliminates steering instability, improves alignment, and reinforces suspension strength under extreme loads.
Adjustability: Fully adjustable for lifts up to 6", allowing precise caster correction, pinion angle adjustments, and axle centering to maintain proper suspension geometry and steering response.
Construction: Built from 5/16” wall 1.75” OD DOM tubing, these control arms feature Rock Jock Johnny Joints at both ends for maximum articulation, durability, and reduced suspension bind. Fully greaseable and rebuildable for long-term performance in extreme conditions.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States. You break it, we replace it.
Built With

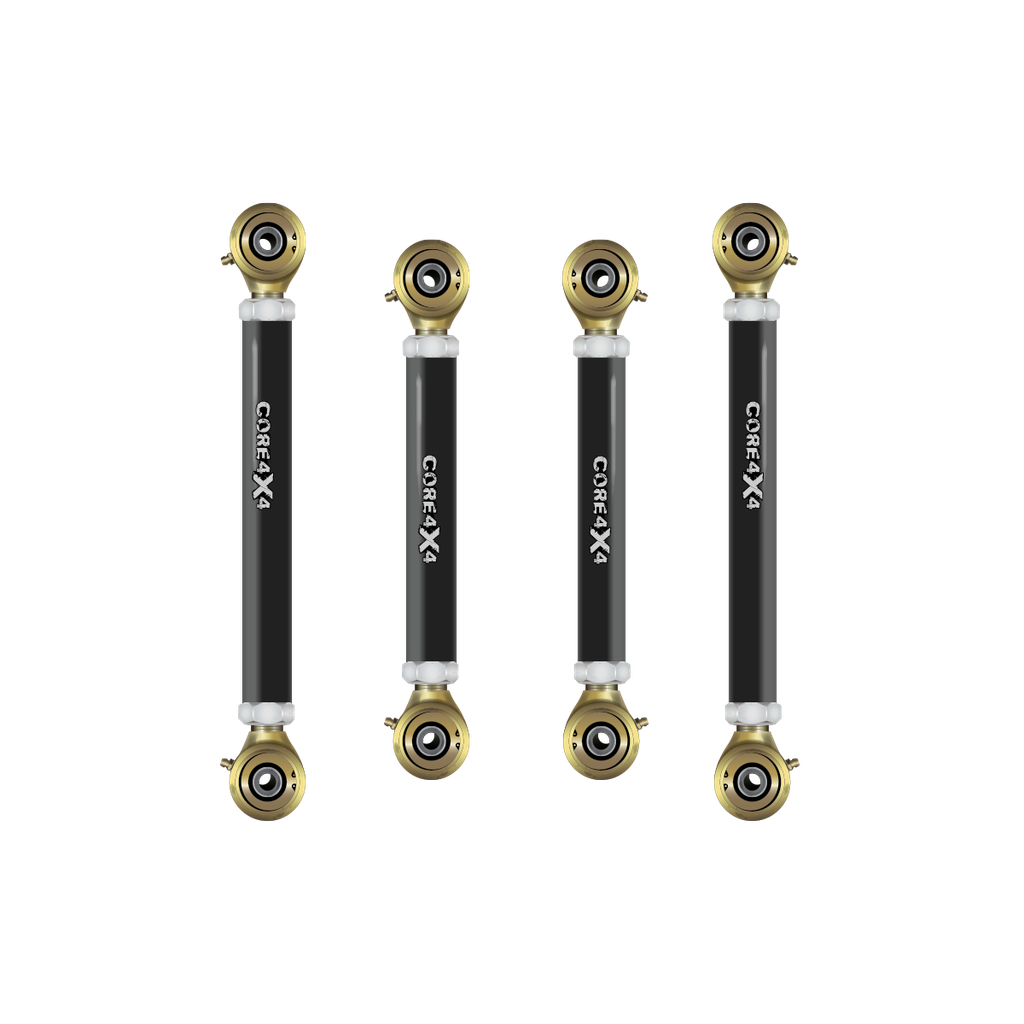

Front Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Front Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Construction & Materials
Front Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
| Vehicle | Ram HD 3500 (03–07) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | 0" — 6" or 6"+ |
| Arm Bend | No Bend or Inward Bend |
| Hardware | No Hardware or Complete Kit |
| Series | Tow Series |
| Year Range | 03-07 |
| Placement on Vehicle | Front Upper, Front Lower, Front |
| Mounting Style | Bolt-On |
Complete Control for Towing Hauling
Take full control of your Dodge Ram 3500 (2003–2007) suspension with the Tow Series Adjustable Front Control Arm Set. Designed for heavy-duty towing, hauling, and off-road durability, this set includes both adjustable front upper and lower control arms to provide maximum strength, stability, and alignment control. Whether you’re towing heavy loads or upgrading your truck’s performance, these control arms offer unmatched adjustability to fine-tune your axle position, caster, and pinion angle for optimal handling and drivability.
Key Features Benefits
- Full Axle Alignment Control – Provides complete adjustability for axle positioning, pinion angle, and caster, ensuring proper suspension geometry and eliminating driveline vibrations.
- Heavy-Duty DOM Tubing Construction – Built from 1.75” OD DOM tubing with a 5/16” wall thickness, these control arms offer superior durability for high-load applications.
- Rock Jock 4x4 Johnny Joints at Both Ends – Features fully greaseable and rebuildable joints, delivering increased articulation, long-term reliability, and reduced suspension wear.
- Effortless Adjustability – Threaded with left- and right-hand threads, allowing for on-the-truck adjustments without removal. Accommodates lifts from 0 to 6 inches.
Recommended Pairing
For complete control over axle positioning and drivability, pair with the Front Track Bar (D-35-2003-FTB1).
Optional Inward Bend for Larger Tires
For trucks running larger tires that experience rubbing against the control arms, we offer an optional inward bend upgrade. This design modification provides additional clearance while maintaining full strength and stability. If your tires currently rub, we strongly recommend selecting this upgrade for a better fit and improved articulation.
Two-Stage Powder Coating for Maximum Protection
To ensure long-lasting durability, our control arms undergo a two-stage powder coating process. A zinc primer base coat provides advanced rust and corrosion resistance, followed by a durable topcoat available in 10 color options, allowing you to personalize your build.
Made in the USA
Proudly designed, engineered, and manufactured in Orem, UT, ensuring top-tier craftsmanship, strict quality control, and long-term reliability.
Conclusion
The Tow Series Adjustable Front Control Arm Set (TOW-D-35-2003-FS4) is the ultimate upgrade for Ram 3500 (2003–2007) owners looking for superior strength, adjustability, and long-term performance in heavy-hauling and towing applications. Upgrade today and take full control of your Ram 3500’s suspension for unmatched durability and stability!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, and any add-on options, then add to cart — you’ll confirm your lift height at checkout. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
