Product Details
This kit includes 3 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Dodge/Ram | 1500 | 2009–Present |
Vehicle Fitment: Designed for Ram 1500 09+, this rear suspension kit enhances stability, traction, and axle control for city driving, towing, and off-road performance.
CORE Advantage: Eliminates wheel hop, reduces driveline vibrations, and improves power transfer with Johnny Joints for articulation and polyurethane bushings to minimize NVH.
Adjustability: Allows precise axle and pinion angle adjustments, supporting up to a 6-inch lift or 6-inch drop to maintain proper suspension geometry and driveline efficiency.
Construction: Built from 1.75” OD heavy-wall DOM tubing for upper and lower control arms and 1.5” OD DOM tubing for the panhard bar. Features Rock Jock Johnny Joints and polyurethane bushings for strength, articulation, and long-term durability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States. You break it, we replace it.
Built With

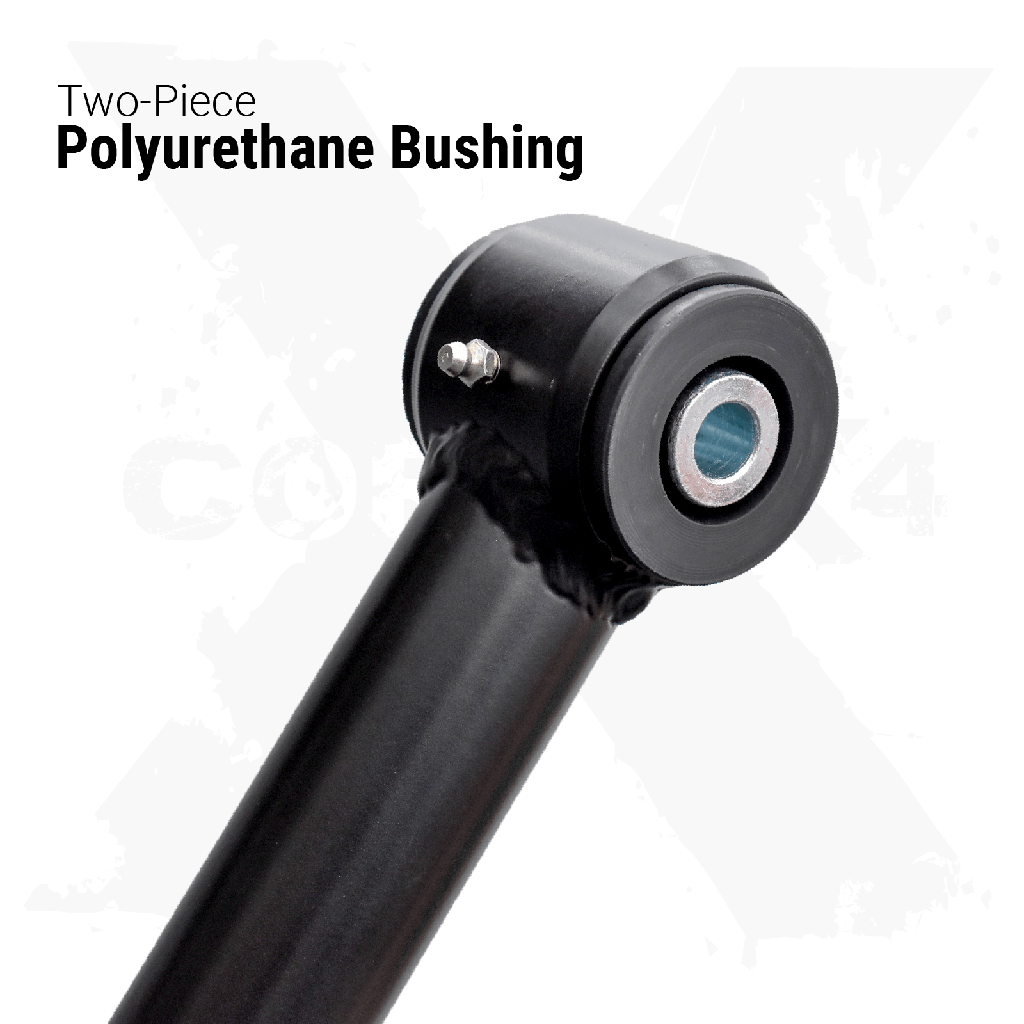

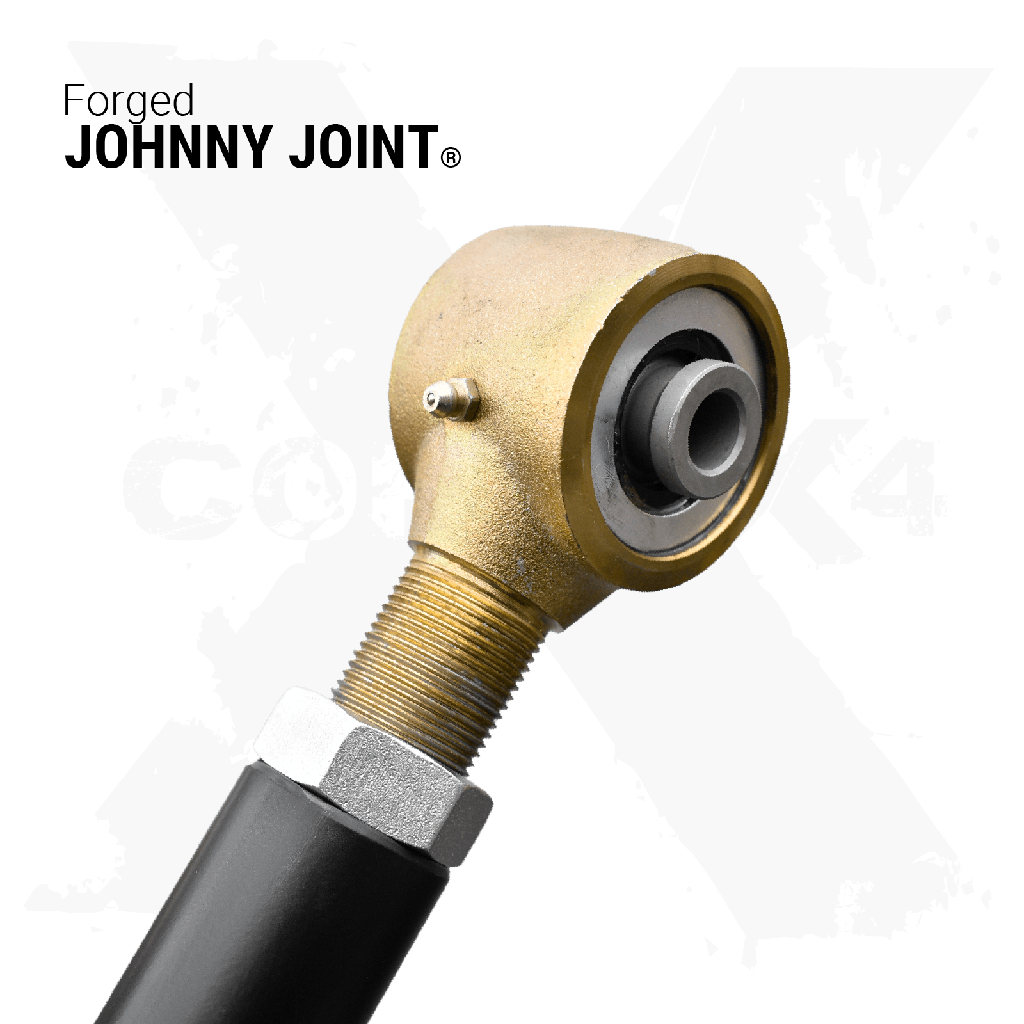

Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Construction & Materials
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Trail Series |
| Lift Size | 0" — 6" or 6"+ or -6" — -1" |
| Hardware | No Hardware or Complete Kit |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Enhanced Stability Suspension Control

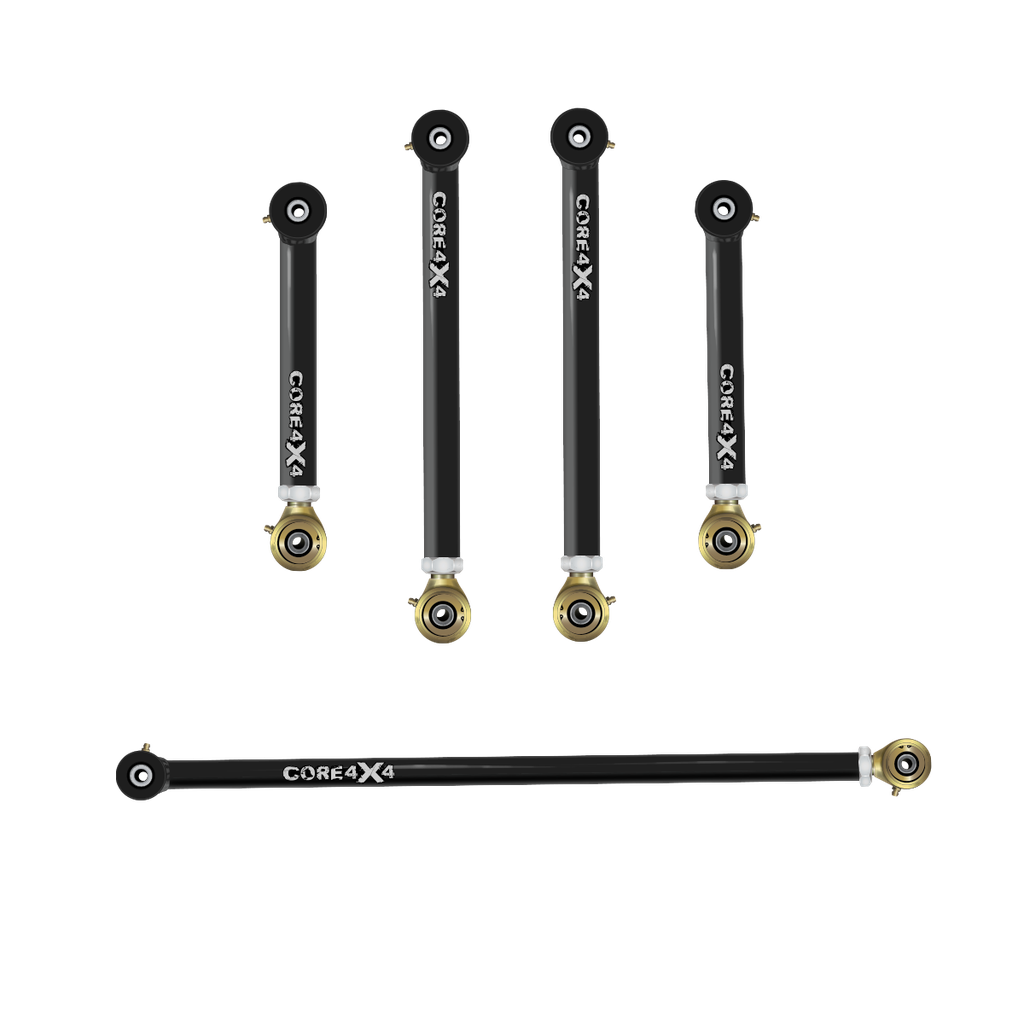

Maximize the control and performance of your Ram 1500 (2009–Present) with the Trail Series Adjustable Rear Suspension Kit. Designed for city driving, towing, and off-road performance, this complete kit provides adjustability to fine-tune rear axle alignment, eliminate wheel hop, reduce driveline vibrations, and improve overall ride quality.
Key Features Benefits
- High-strength DOM tubing construction – Built with heavy-wall DOM tubing, offering a balance of strength and durability to withstand extreme conditions.

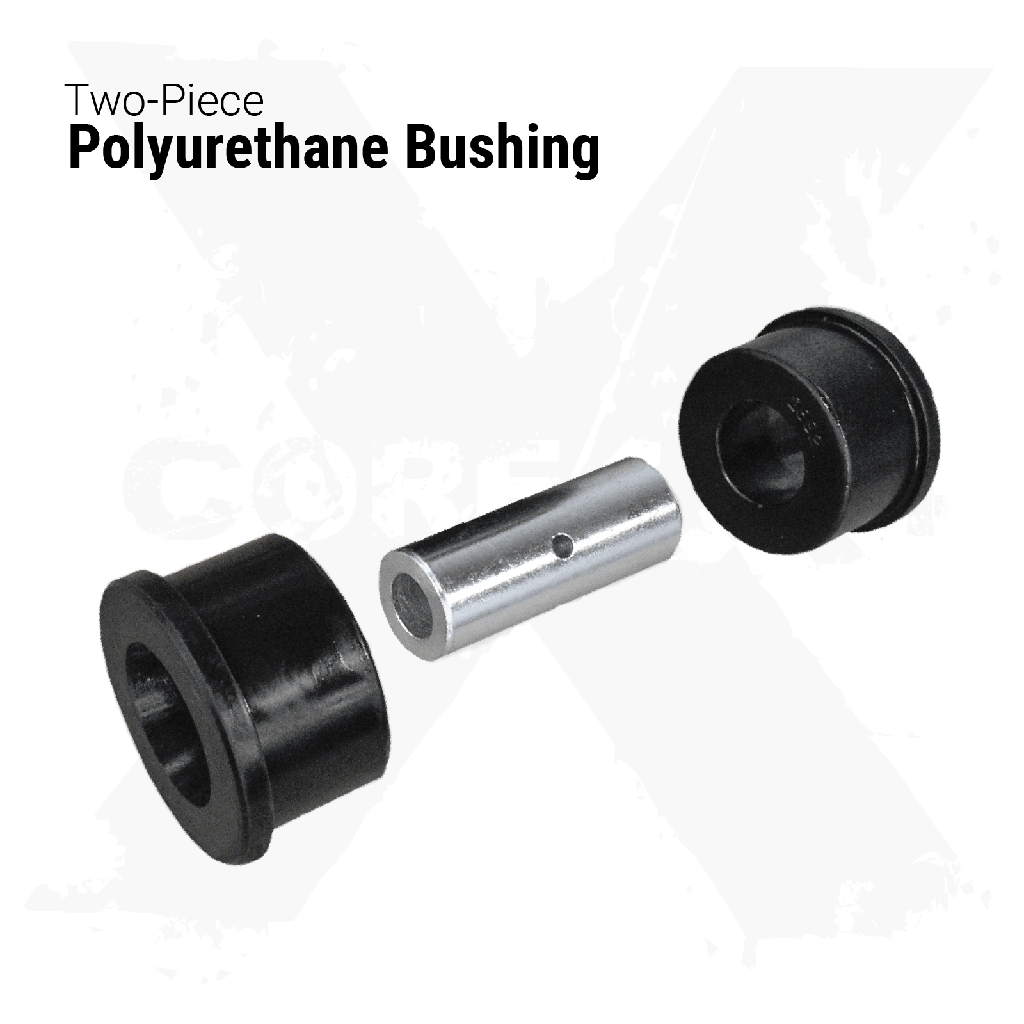

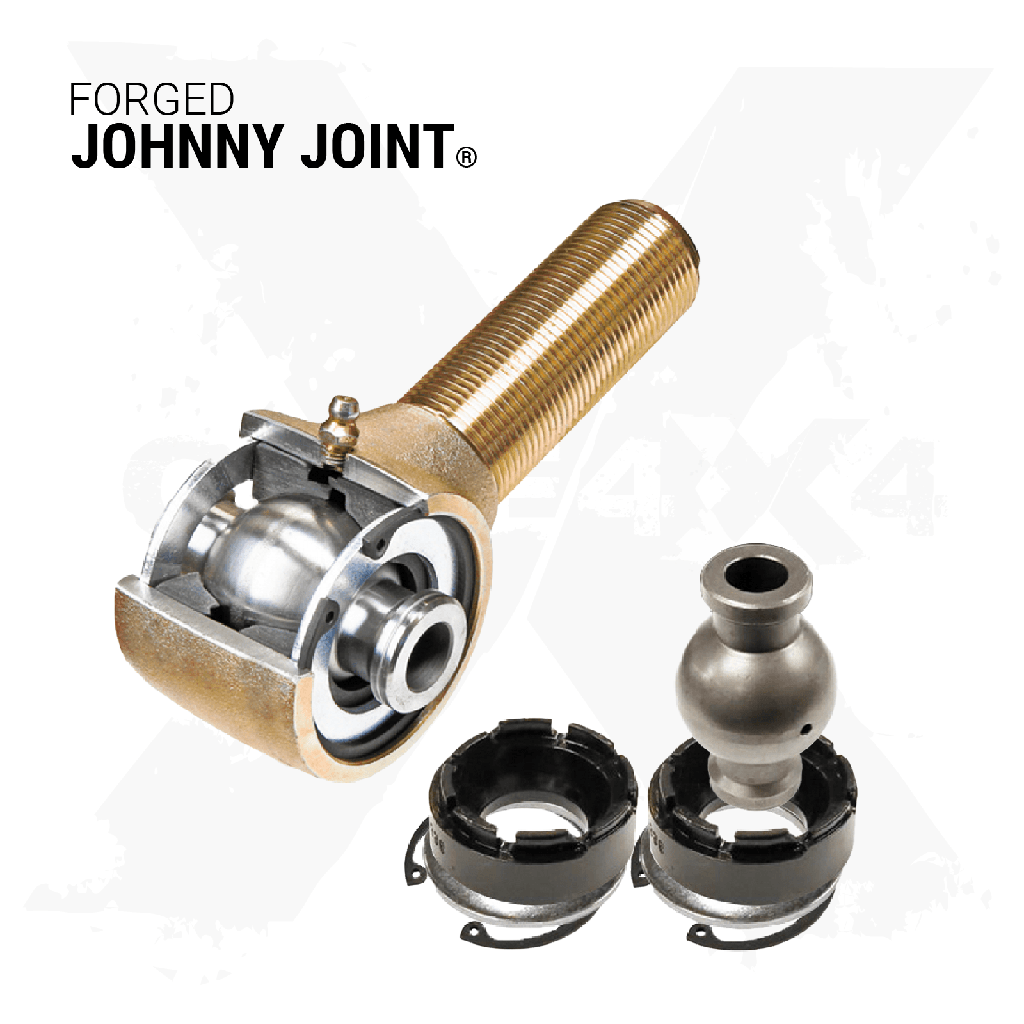

- Rock Jock Johnny Joints high-grade polyurethane bushings – Features Johnny Joints at the adjustable ends for maximum articulation and polyurethane bushings on the fixed ends to minimize NVH (noise, vibration, and harshness).
- Easily adjustable for rear axle pinion angle alignment – Allows for precise adjustments to correct driveline angle and optimize suspension geometry.
- Eliminates wheel hop enhances traction – Factory rubber bushings preload the axle, causing instability under acceleration. Our Trail Series kit reduces axle movement, improving traction and ensuring smooth power delivery.
Recommended Pairing for Total Suspension Control
For optimal rear-end stability, we recommend pairing this kit with Trail Series Adjustable Rear Sway Bar End Links (TRL-R-15-2009-EL2) to further improve stability and cornering performance.
Fine-Tune Rear Axle Alignment Pinion Angle
Unlike factory control arms, which lack adjustability, the Trail Series Adjustable Rear Suspension Kit gives you full control over pinion angle and axle positioning, reducing driveline vibrations, improving traction, and maintaining proper geometry—essential for lifted or modified trucks.

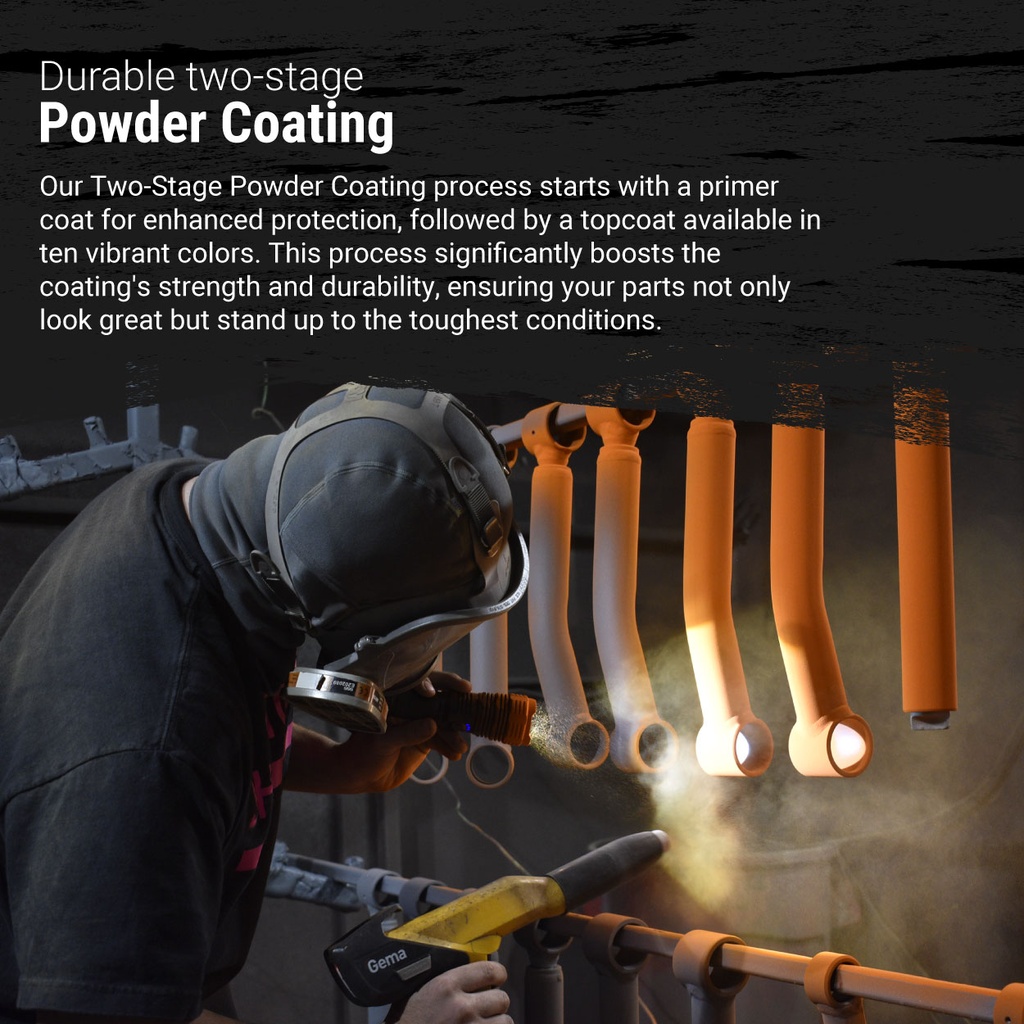

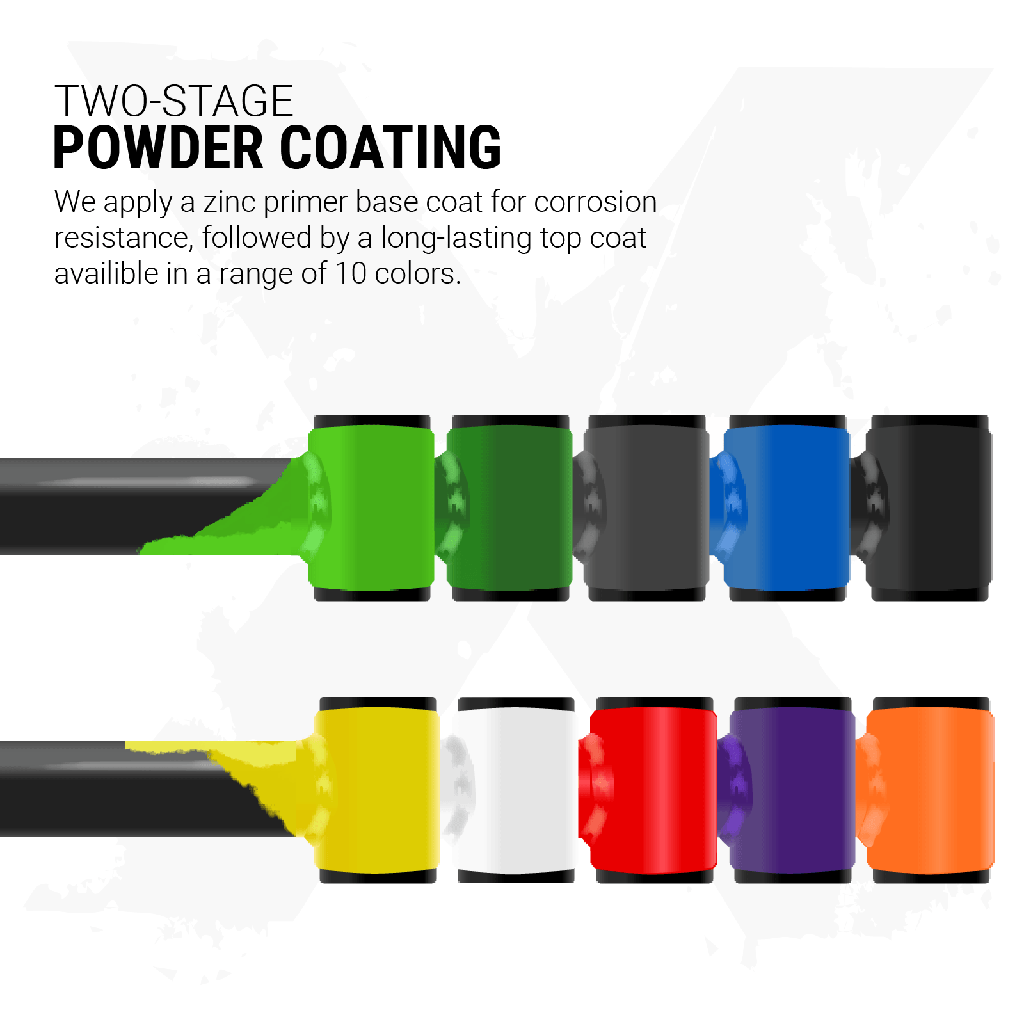

Highly Durable Two-Stage Powder Coating
Each component undergoes a two-stage powder coating process for long-term durability. The first stage includes a zinc primer base coat for maximum rust resistance, followed by a durable topcoat available in 10 color options for a customized look.
Proudly Made in the USA
Manufactured in Orem, UT, every CORE 4X4 component meets strict quality control standards for precision, strength, and long-term durability.
Final Thoughts
The Trail Series Adjustable Rear Suspension Kit provides adjustability, premium ride quality, and suspension control, making it a must-have upgrade for Ram 1500 owners. For complete rear-end stability and cornering performance, pair this kit with Trail Series Adjustable Rear Sway Bar End Links (TRL-R-15-2009-EL2).
Upgrade today and experience the difference in traction, stability, and ride quality!
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, and any add-on options, then add to cart — you’ll confirm your lift height at checkout. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
