12pc Crawl Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CRL-J-JL-K12 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,722.08 2722.08 USD $ 3,202.45

$ 3,202.45

Save 15% · $ 480.37 off

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
100% bolt-on no welding MADE IN USA · Orem, Utah Expert Support 100K+ Community
Free mounting hardware included — a $100 value
Drag Link Orientation
Stabilizer Clamp
1
CRAWL

"Trail Domination" — Hardcore builder, competition

We also build Cruise, Camp Compare Series
CRUISE −$832 CAMP −$475 CRAWL You're here See full comparison →
Joints Forged Johnny Joint
Tubing 1.75" OD lowers / 1.50" OD uppers 5/16" wall DOM
COLOR Pick yours
https://jerdev.core4x4.com/web/image/product.template/1751/image_1920?unique=982bc5a

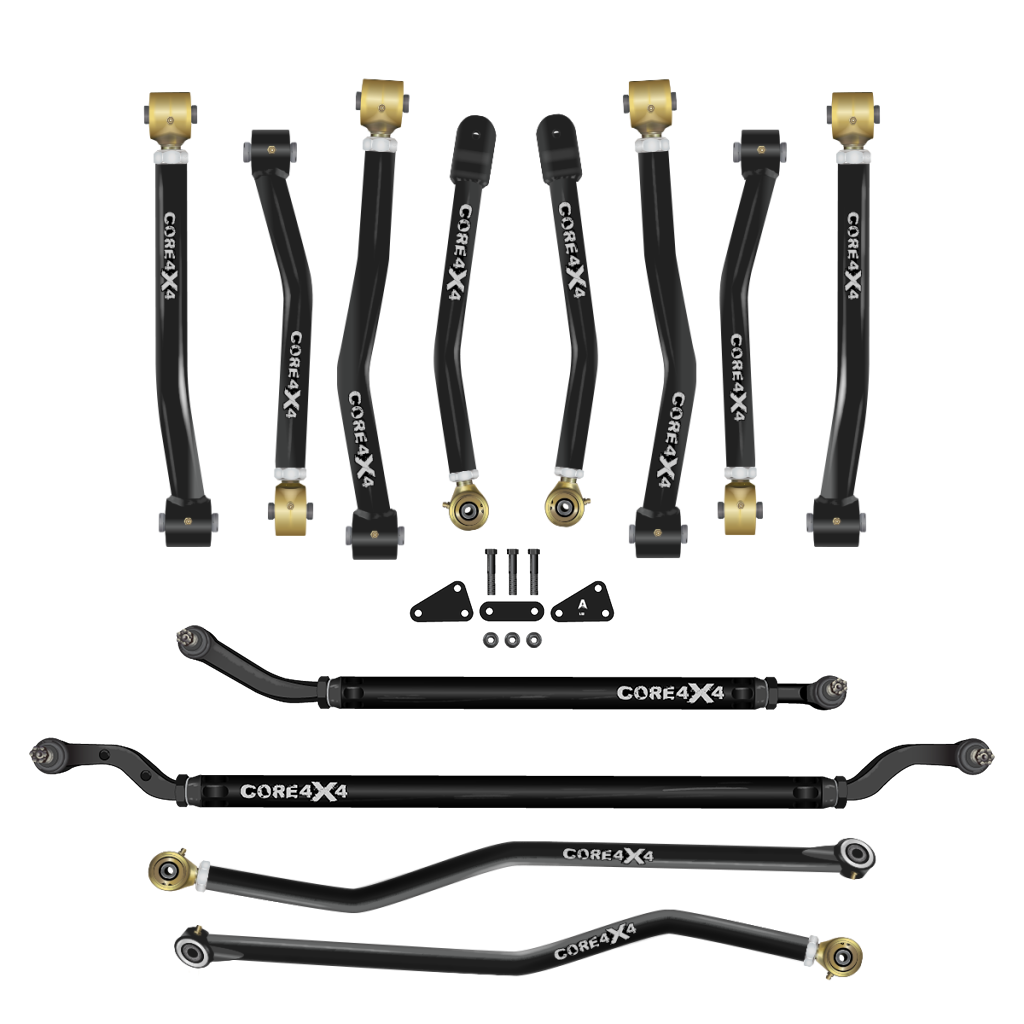

12pc Crawl Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CRL-J-JL-K12
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,722.08 2722.08 USD $ 3,202.45

$ 3,202.45

Save 15% · $ 480.37 off

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.
  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Free mounting hardware included — a $100 value

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Experience Unmatched Control with Total Suspension and Steering Solutions

Elevate your Jeep Wrangler JL’s performance with the Crawl Series Complete Kit With Steering. This comprehensive upgrade offers unparalleled stability, durability, and articulation, combining complete suspension control with a heavy-duty 2.5-ton aluminum steering system. Designed to conquer the toughest trails while maintaining excellent on-road drivability, this kit delivers unmatched precision and reliability for lifted Jeeps.

Key Features and Benefits

  • Enhanced suspension geometry – Keeps axles centered, corrects pinion and caster angles, and eliminates issues like crab walking for a smoother and more controlled ride.
  • Unparalleled steering strength – The 2.5-ton aluminum steering kit, made from 2-inch 7075 aluminum, provides extreme durability with a memory feature that allows it to flex and return to its original shape after impacts.
  • Maximum off-road articulation – Johnny Joints at both ends of all control arms and track bars provide superior flexibility, ensuring bind-free movement on tough terrain without compromising strength.
  • Fully adjustable for precision tuning – Supports suspension lifts from 0 to 6 inches, allowing for fine-tuned alignment, axle re-centering, and optimized suspension geometry. Custom solutions are available for larger lifts.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for straightforward installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or stubborn bolts.


  • Vehicle Fitment: Jeep Wrangler JL 18+ – A complete suspension and steering upgrade for precise handling, stability, and off-road capability.

  • CORE Advantage: Provides absolute control over axle positioning, pinion angle, caster adjustments, and steering geometry for unmatched ride quality.

  • Adjustability: Fully adjustable for 0–6” lifts, allowing precise axle re-centering, optimized suspension geometry, and fine-tuned steering responsiveness.

  • Construction: Built from heavy-duty DOM tubing with 5/16” walls, featuring 1.75” OD lowers, 1.5” OD uppers, and a 2.5-ton 7075 aluminum steering kit for maximum strength.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

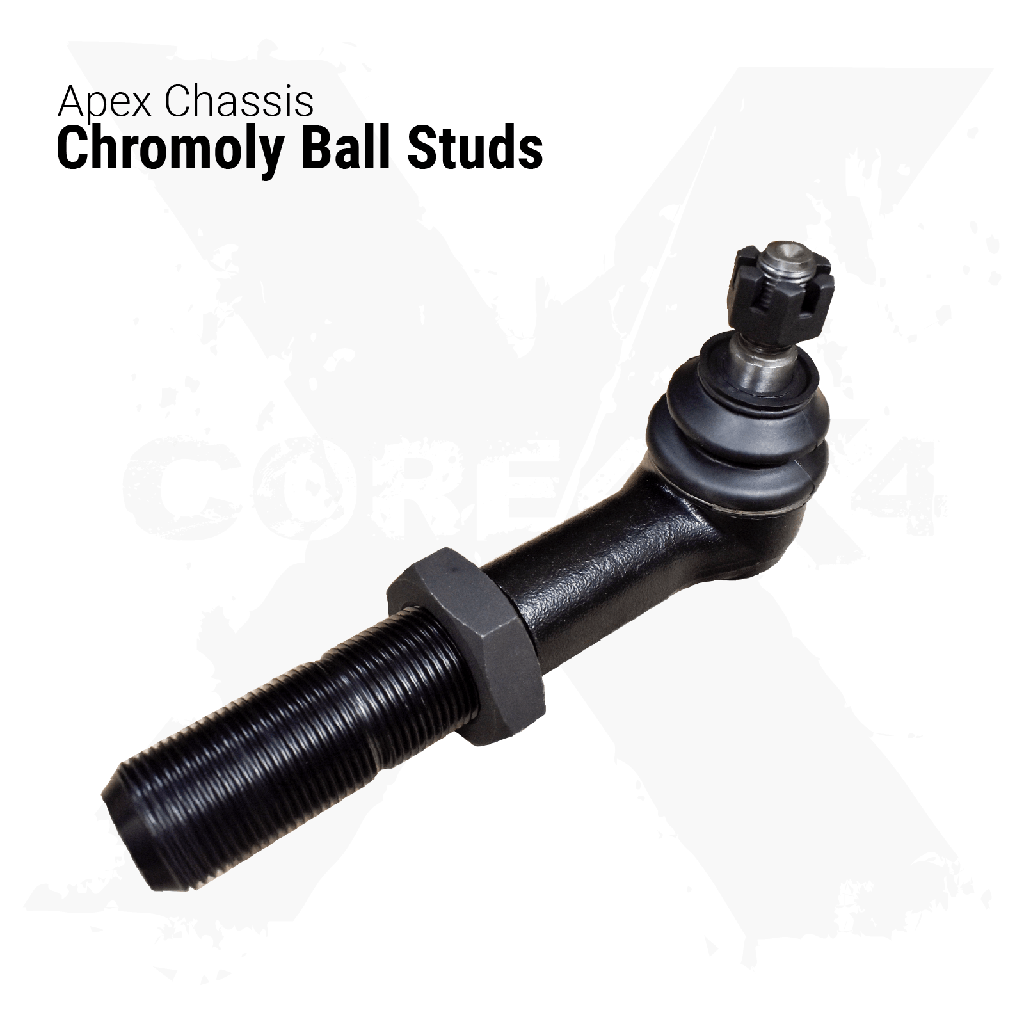

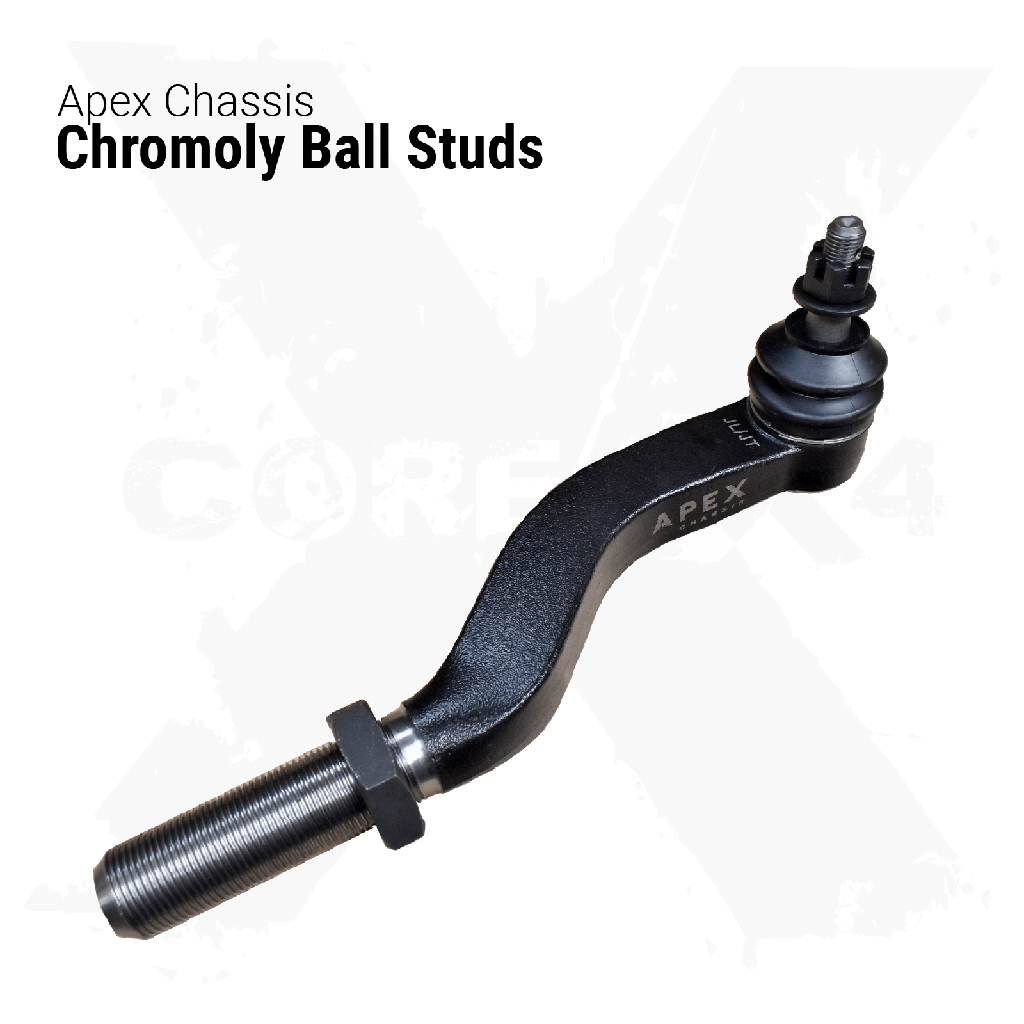

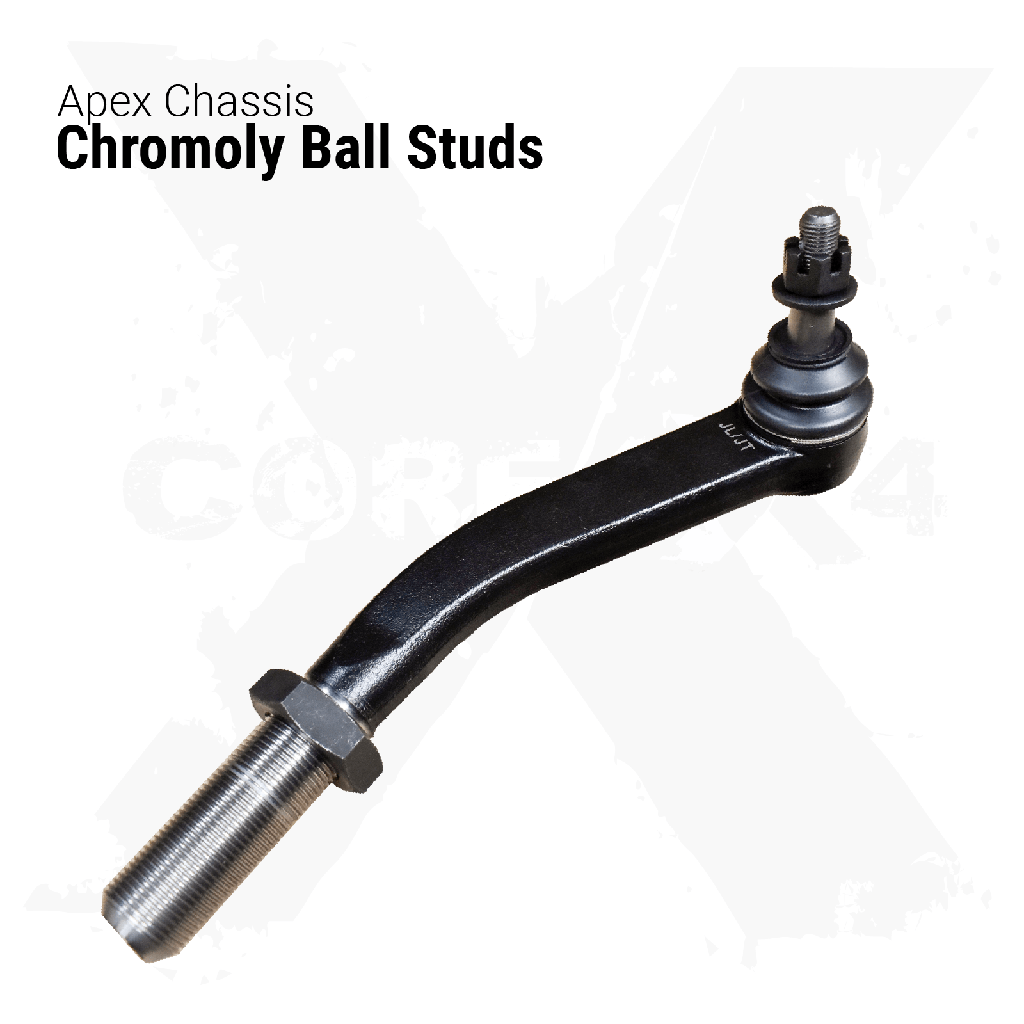

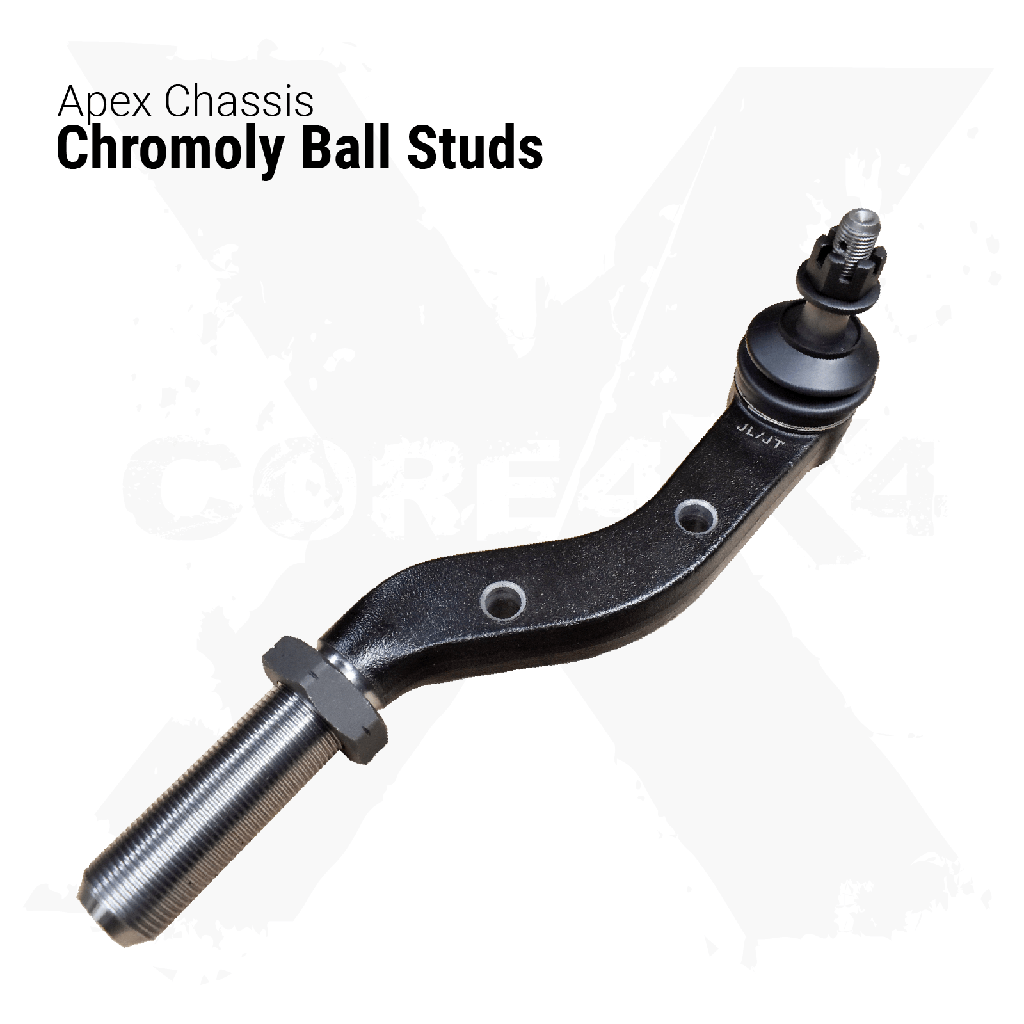

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2018 - Present

Construction & Materials

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JL / JLU 18+ Crawl Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JL / JLU 18+ Crawl Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JL / JLU (18–Present)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
E(
Eric Hernandez (savagefit) May 27, 2025
★ ★ ★ ★ ★ Google
The whole process was quick and painless. The products are top tier and when I reached out them for package update info, Korby Linscomb was very responsive, and got me the answers I needed the same day. Even when I emailed back to some additional info, he sent what I was looking for that same day. I love core 4x4 and will be giving them my business from now on.
TM
Tony Moller Aug 25, 2025
★ ★ ★ ★ ★ Google
Awesome parts! Support the older Jeeps! Great customer service.
BC
Brad C Mar 24, 2021
★ ★ ★ ★ ★ Google
Outstanding experience! I asked Core to build me a set of custom control arms that were larger/heavier than they normally build. They gladly accepted the challenge and turned out an expertly crafted and super strong product ahead of schedule. Fit and finish are excellent. Spence and Cameron were a pleasure to work with every step of the way. And all of this for a very reasonable price. I highly recommend these guys!
Review photo 1
RR
Ryan Rogers Aug 25, 2025
★ ★ ★ ★ ★ Google
I purchased a set of the Cruiser Series control arms for my Jeep Jk based on postive reviews from different Jeep Facebook pages. Ordered and 2 days later realized they had the very same exact arms on sale in the overstock section. Called them up and they refunded me the savings from my original purchase. Amazing, honest service. Can't wait to get them installed. Keep up the good work guys.
MR
Melanee Raynes Mar 25, 2019
★ ★ ★ ★ ★ Google
Awesome product and service! I even got some of their swag because it looked pretty darn good. I will definitely be going back and would suggest this business to others looking for quality control arms. Buy local!
EC
Eric Cox Jul 26, 2025
★ ★ ★ ★ ★ Google
Prompt, professional, and courteous service! Quality parts and broad assortment of products to suite your 4x4 needs:)
AM
Adam M Sep 24, 2025
★ ★ ★ ★ ★ Google
First time buying from Korby @ Core 4x4 and it’s being nothing short of a great experience. I bought the non adjustable Trail kit for my 5th Gen Ram 1500 with a 2” lift. The welds look great, nice powder coat finish and quality bushing. Had some trouble fitting the grease nipples due to the powder coating but a thread tap would fix that. They fit easily and perform great. I felt the improvement straight away. No more wheel hop on hard acceleration which was my main reason for the purchase. I was missing some smaller bushings needed for the 5th Gen and Korby’s custom service was on point, with responsive emails and mailing out the missing parts straight away. Very happy with their products and customer service. Highly recommended company👌🏽
Review photo 1 Review photo 2 Review photo 3 Review photo 4
PG
Paul Griffin Feb 21, 2026
★ ★ ★ ★ ★ Google
Great long arm kit with everything else I needed as well! They worked with me to ensure that I was getting an upgraded components kit just like I wanted. Fast shipping with some of the best packaging that I have ever seen. Nothing was scratched or missing and this kit is even more impressive than the videos or website can show. Powder coating looks great with no issues. I would highly recommend CORE 4x4 to anyone looking for a great quality kit.
OK
oleg k Nov 23, 2025
★ ★ ★ ★ ★ Google
I recently ordered a set of control arms from Core 4x4, and the entire experience was absolutely top-notch from start to finish. The ordering process was smooth, the parts arrived quickly, and the control arms themselves are extremely high quality—solid construction, great finish, and clearly built to last. I also want to give a special shout-out to Korby, the guy I spoke with during the process. His customer service was amazing. He went above and beyond to make sure I got exactly what I needed, answered all my questions, and made the whole experience stress-free. You don’t see service like that very often these days. If you’re looking for high-quality suspension components backed by truly exceptional customer service, I highly recommend Core 4x4. I’ll definitely be buying from them again.
RC
Ryan Colligan Mar 4, 2026
★ ★ ★ ★ ★ Google
I have nothing but good things to say about Core 4x4. I have the crawler series on my JKU and we take it all over the place. These parts handle everything we throw at them.

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size 0" — 6", 6"+
Hardware No Hardware, Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle), Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp, Hydraulic Assist Clamp
Vehicle Jeep Wrangler JL / JLU (18–Present)
Brand CORE 4X4
Series Crawl Series
Note to Core4x4: -
