Product Details
This kit includes 3 components, each built and powder-coated in-house.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Grand Cherokee | 1999–2004 |
Vehicle Fitment: Jeep Grand Cherokee WJ 99-04 – Enhances stability, articulation, and handling by optimizing axle alignment and suspension geometry for improved ride quality on-road and off-road.
CORE Advantage: Delivers exceptional strength and flexibility, improving articulation, traction, and control over rough terrain. Designed for Jeep enthusiasts seeking superior durability and precise handling.
Adjustability: Fully adjustable to accommodate 0 to 6-inch lifts, allowing fine-tuning of axle centering, caster, and pinion angles for optimal drivability and suspension performance.
Construction: Built from 5/16” wall DOM tubing, featuring 1.75” OD lowers and 1.5” OD uppers with Johnny Joints at both ends, ensuring maximum articulation, longevity, and smoother operation.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States. You break it, we replace it.
Built With

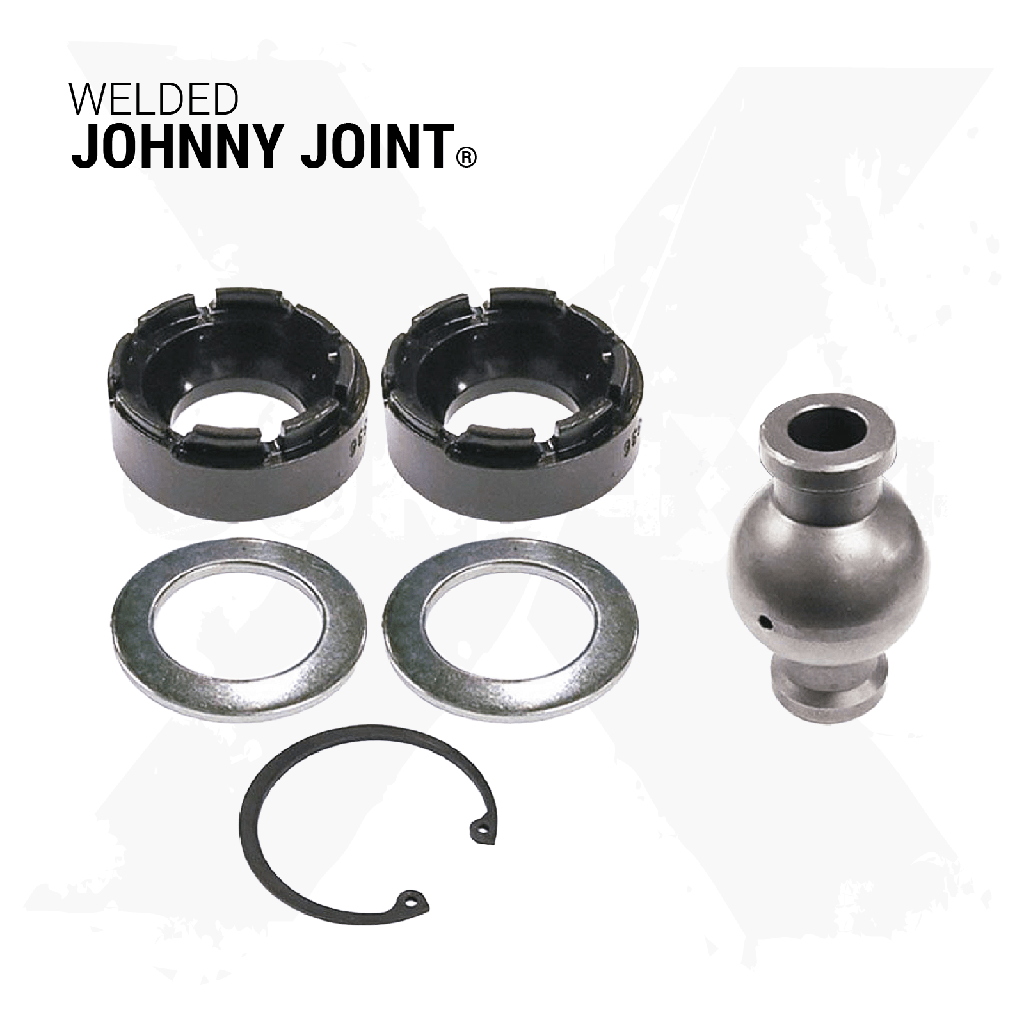

Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Construction & Materials
Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on the adjustable end and a Welded Johnny Joint on the fixed end with 1.25” x 12 TPI - 2.625” long threads.
| Vehicle | Jeep Grand Cherokee WJ (99–04) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Hardware | No Hardware or Complete Kit |
| Lift Size | 0" — 6" or 6"+ |
| Placement on Vehicle | Front Upper, Front Lower, Rear Lower, Front, Rear |
| Mounting Style | Bolt-On |
Unleash Superior Performance and Comfort
Transform your Jeep Grand Cherokee WJ (1999-2004) with the Crawl Series Complete Control Arm Set—a must-have upgrade for drivers looking to enhance durability, articulation, and ride quality. This set is designed to deliver unmatched strength and flexibility off-road while maintaining excellent drivability on pavement. Whether you're conquering rough terrain or cruising the highway, these control arms provide the perfect balance of stability, adjustability, and control.
Key Features Benefits
- Heavy-duty DOM tubing construction – Built from 5/16” wall DOM tubing, these control arms are engineered to withstand the toughest conditions. The lower control arms utilize 1.75” OD tubing, while the uppers feature 1.5” OD tubing, ensuring superior durability over stock and competitor options.
- Johnny Joints for maximum flexibility – Every control arm is equipped with RockJock Johnny Joints at both ends, allowing for extreme articulation without binding. These joints provide unparalleled durability, smoother operation, and enhanced longevity compared to traditional rubber or poly bushings.
- Adjustability for perfect suspension geometry – Designed to accommodate lifts from 0 to 6 inches, these adjustable control arms allow you to fine-tune axle positioning, caster, and pinion angles for optimal drivability and handling. For lifts beyond 6 inches, contact us for additional options.
- Pair with a front track bar or rear A-arm for a complete suspension solution – For the best results, we recommend pairing this set with our Crawl Series Front Track Bar (CRL-J-WJ-FTB1) or Rear Adjustable A-Arm (CRL-J-WJ-AA1). This ensures proper axle centering, stability, and alignment—giving you a fully optimized suspension system for both on- and off-road driving.
Two-Stage Powder Coating
Each control arm undergoes a two-stage powder coating process to maximize durability and corrosion resistance. A zinc primer base coat creates a solid barrier against rust, followed by a top coat in your choice of 10 colors for a custom look.
Proudly Made in the USA
Manufactured in Orem, UT, our Crawl Series Control Arm Set exemplifies American craftsmanship and engineering. We oversee every step of the process to ensure the highest quality, sourcing materials locally to maintain strict manufacturing standards.
Final Thoughts
Upgrade your Jeep Grand Cherokee WJ with the Crawl Series Complete Control Arm Set and experience unparalleled suspension performance, flexibility, and durability. This set is built for enthusiasts who demand the best in off-road capability and on-road comfort. Pair it with a front track bar or rear A-arm for the ultimate suspension setup and take your WJ to the next level.
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, and any add-on options, then add to cart — you’ll confirm your lift height at checkout. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
