16pc Complete Kit

Adjustable control arms + track bars · fixed-length end links · steering · fits 0"–8" lift

$ 3,280.16 3280.16 USD $ 3,727.45

$ 3,727.45

Build Season · Save 12% — $447 off · ends Aug 28

More ways to pay ▾

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate Delivery date by ZIP
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
COLOR Pick yours
100% bolt-on no welding MADE IN USA · Orem, Utah Expert Support 100K+ Community
Free mounting hardware included — a $100 value
Drag Link Orientation
Stabilizer Clamp
1
Joints Johnny Joints both ends
Tubing 1.75" OD lowers / 1.50" OD uppers 5/16" wall DOM
SKU: CRL-J-JL-K16
https://jerdev.core4x4.com/web/image/product.template/1665/image_1920?unique=df113cf

16pc Complete Kit

Adjustable control arms + track bars · fixed-length end links · steering · fits 0"–8" lift

SKU: CRL-J-JL-K16
Does not fit Toyota FJ Cruiser
Google 4.8 ★★★★★ (161 reviews)

$ 3,280.16 3280.16 USD $ 3,727.45

$ 3,727.45

Build Season · Save 12% — $447 off · ends Aug 28

More ways to pay ▾

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.
  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Free mounting hardware included — a $100 value
Order today — ships within 1–3 business days
Enter ZIP for arrival estimate Delivery date by ZIP
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Core 4x4 Manufactured

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Product Details

The Ultimate All-Inclusive Suspension and Steering Solution

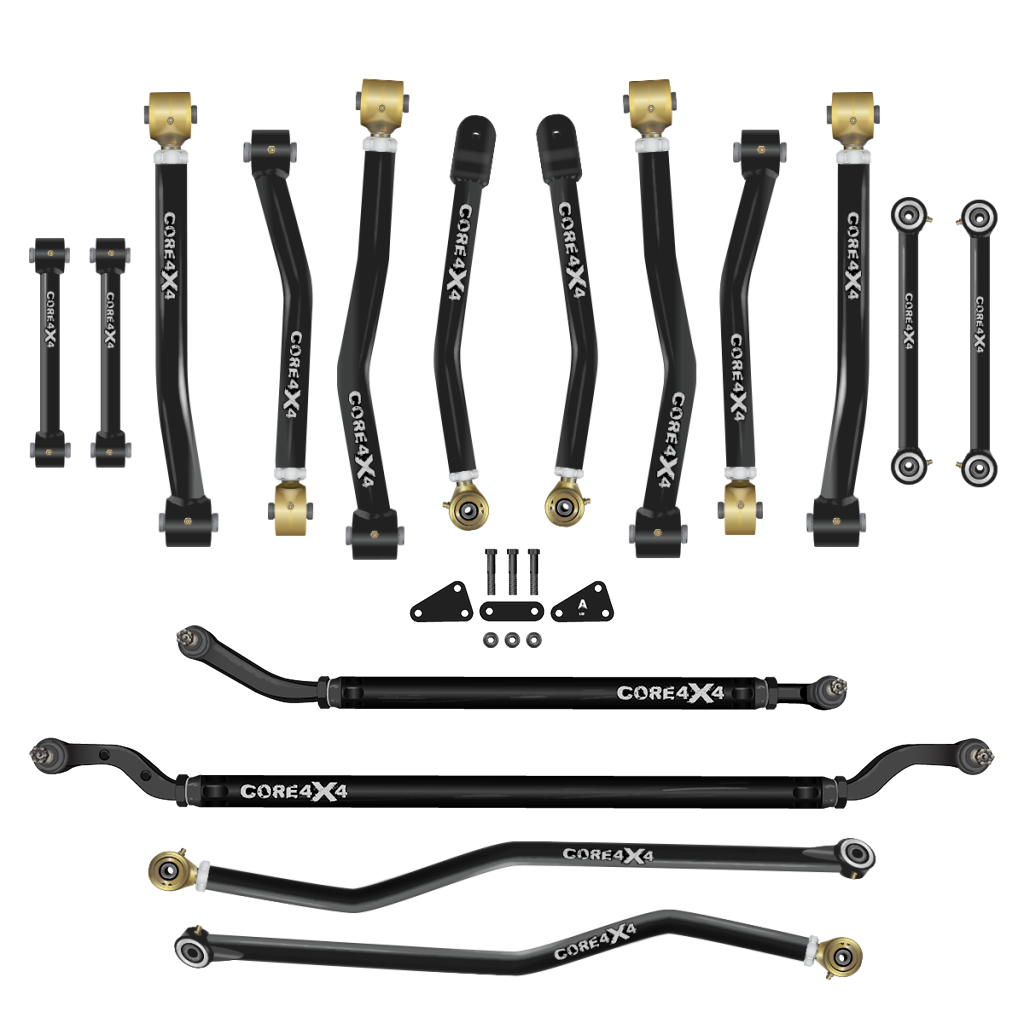

Transform your Jeep Wrangler JL with the Crawl Series Total Suspension Control Kit (CRL-J-JL-K16). This comprehensive system delivers unmatched control, durability, and performance, combining all the essential components needed for a complete suspension overhaul. From superior axle alignment to precise steering geometry and enhanced off-road articulation, this kit is designed to elevate your Jeep’s capabilities on and off the trail. Simply pair it with your choice of springs and shocks to achieve a full suspension revamp or lift kit.

Key Features and Benefits

  • Complete suspension overhaul – Includes 8 adjustable control arms, front and rear track bars, and front and rear sway bar end links, ensuring precise axle alignment, optimal suspension geometry, and enhanced handling for lifted Jeeps.
  • Heavy-duty aluminum steering kit – The 2.5-ton steering kit, crafted from 2-inch 7075 aluminum with memory properties, absorbs impacts and returns to its original shape, delivering superior strength and reliability in extreme off-road conditions.

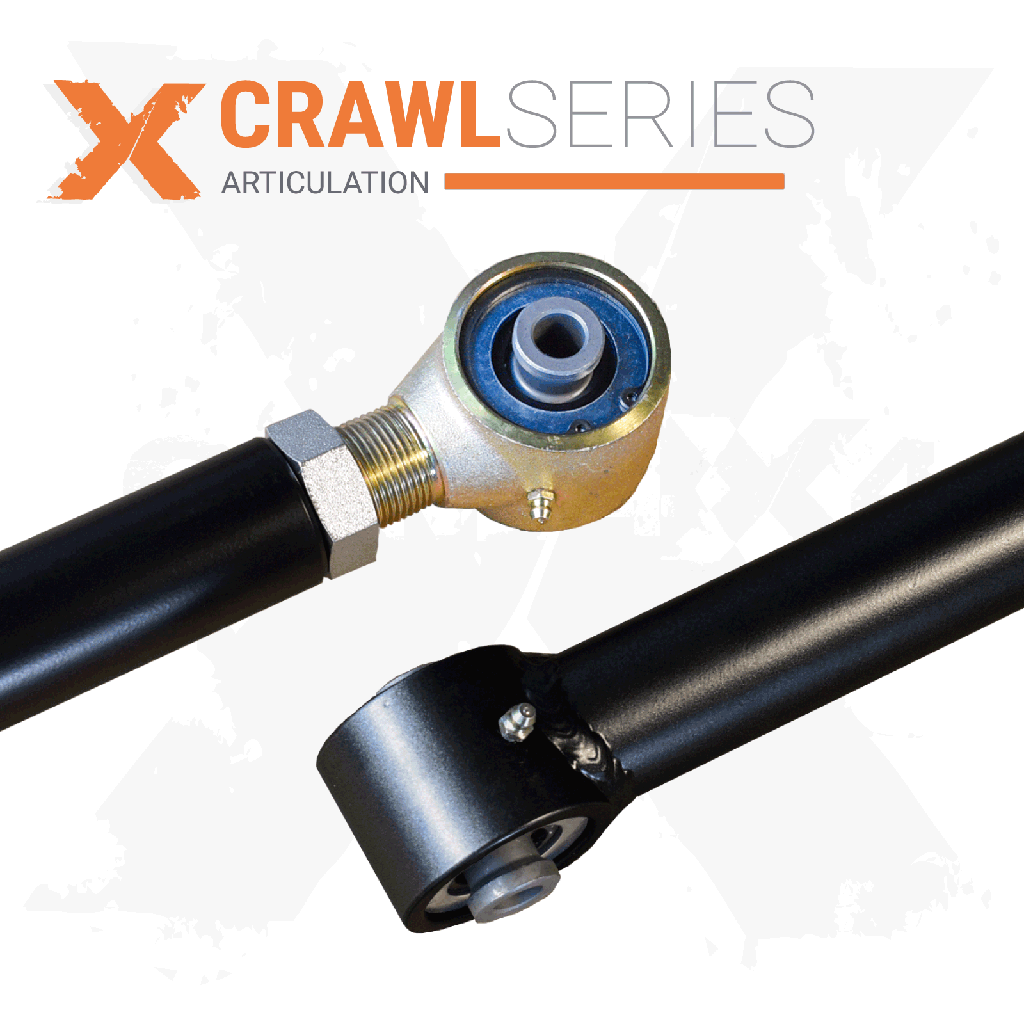

  • Improved stability and articulation – Johnny Joints at both ends of the control arms, track bars, and end links provide unmatched off-road articulation and smooth, bind-free movement while maintaining on-road stability and comfort.
  • Tailored for lifts from 0 to 6 inches – Fully adjustable components accommodate lifts from 0 to 6 inches, allowing for precise alignment correction, axle centering, and optimal caster and pinion angle adjustments. For custom setups over 6 inches, additional solutions are available upon request.

Build the Ultimate Lift Kit

Combine this kit with your preferred springs and shocks to create a custom suspension system that delivers unmatched performance, durability, and off-road capability.

Two-Stage Powder Coating

Each component undergoes a rigorous two-stage powder coating process. A zinc primer base provides exceptional corrosion resistance, while the durable topcoat—available in 10 customizable colors—adds extra protection and a personalized finish to your Jeep.

Made in the USA

Proudly manufactured in Orem, UT, the Crawl Series Total Suspension Control Kit reflects CORE 4X4’s dedication to American craftsmanship. By managing production in-house, we ensure stringent quality standards and support local industries while offering competitive pricing.

Optional Hardware Upgrade

Designed for straightforward installation, the kit uses factory hardware. Optional Grade 8 hardware kits are available separately for Jeeps with rusted or stubborn bolts, ensuring a smooth and hassle-free process.


  • Vehicle Fitment: Jeep Wrangler JL 18+ – A full suspension and steering upgrade for precise handling, stability, and off-road capability.

  • CORE Advantage: Provides absolute control over axle positioning, pinion angle, caster adjustments, and steering geometry for unmatched ride quality.

  • Adjustability: Fully adjustable for 0–6” lifts, allowing precise axle re-centering, optimized suspension geometry, and fine-tuned steering responsiveness.

  • Construction: Built from heavy-duty DOM tubing with 5/16” walls, featuring 1.75” OD lowers, 1.5” OD uppers, and a 2.5-ton 7075 aluminum steering kit for maximum strength.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

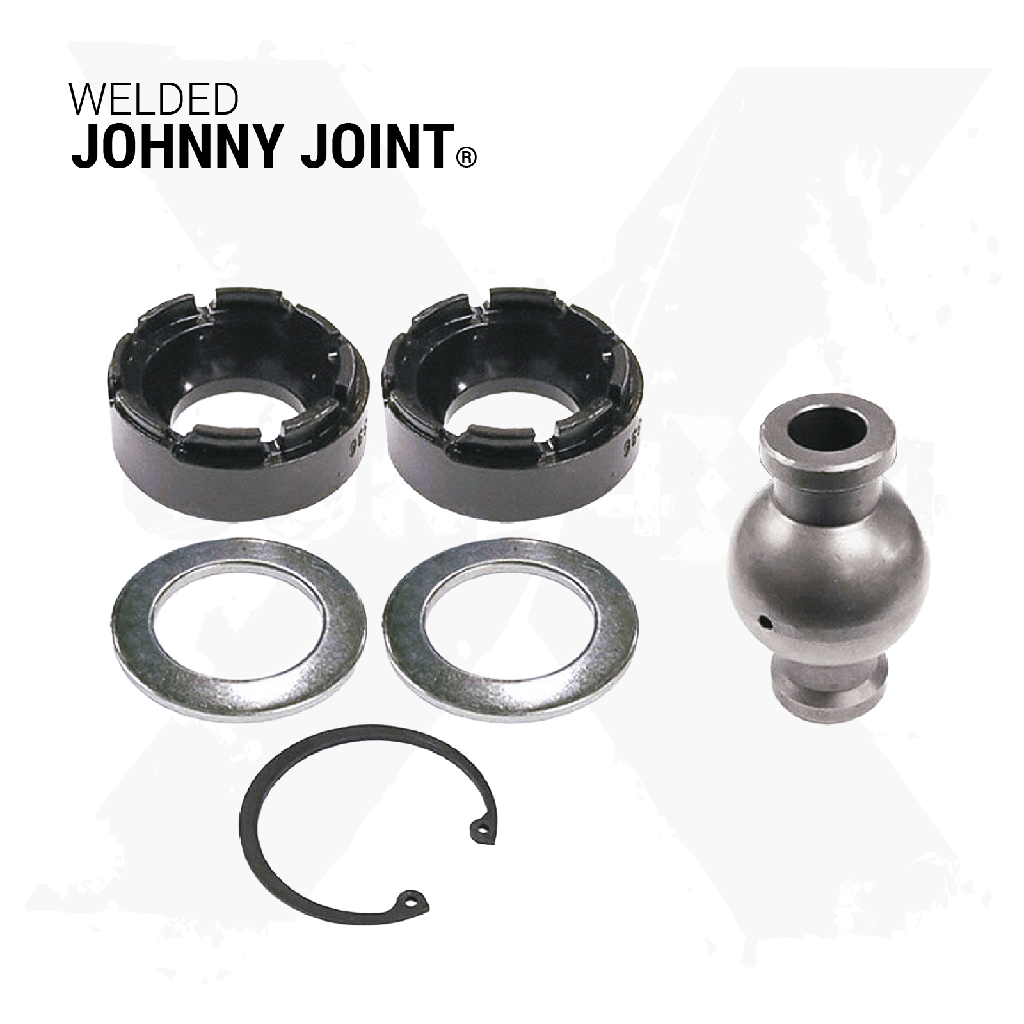

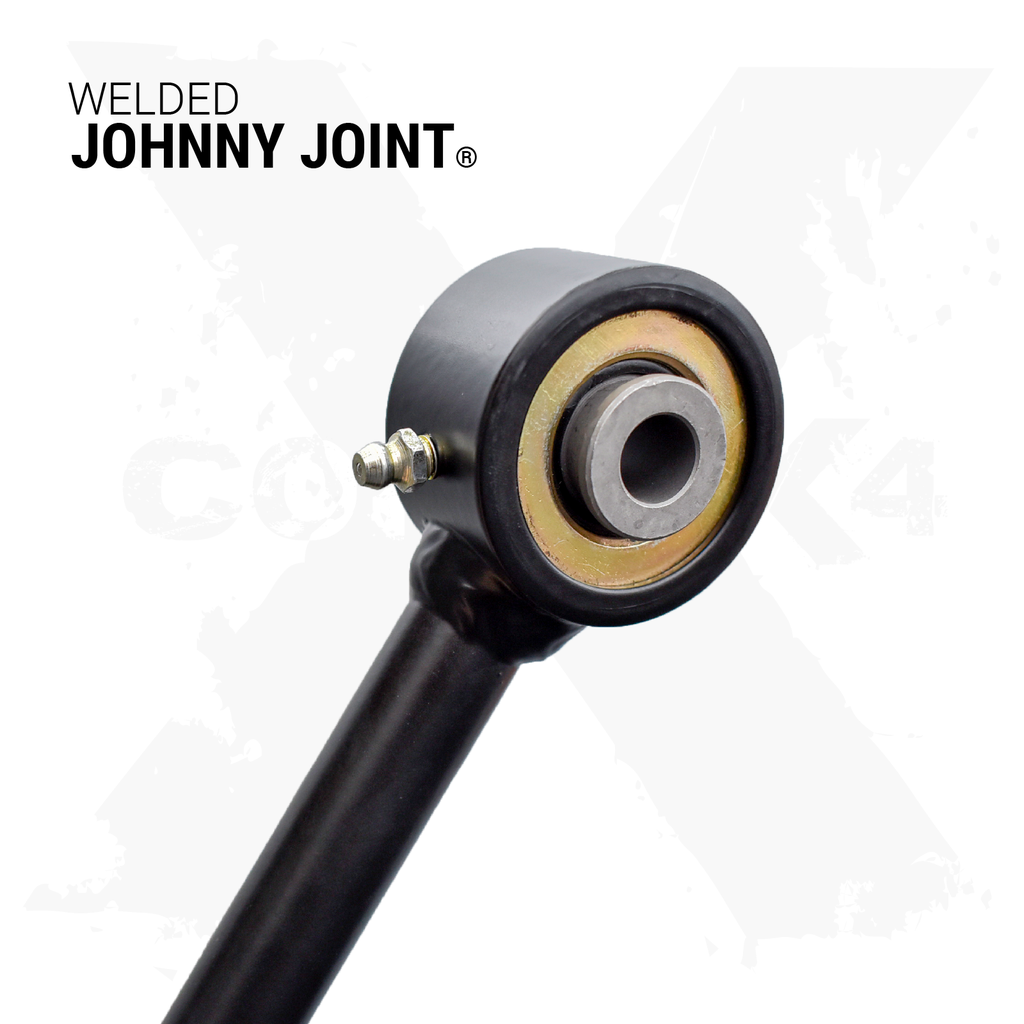

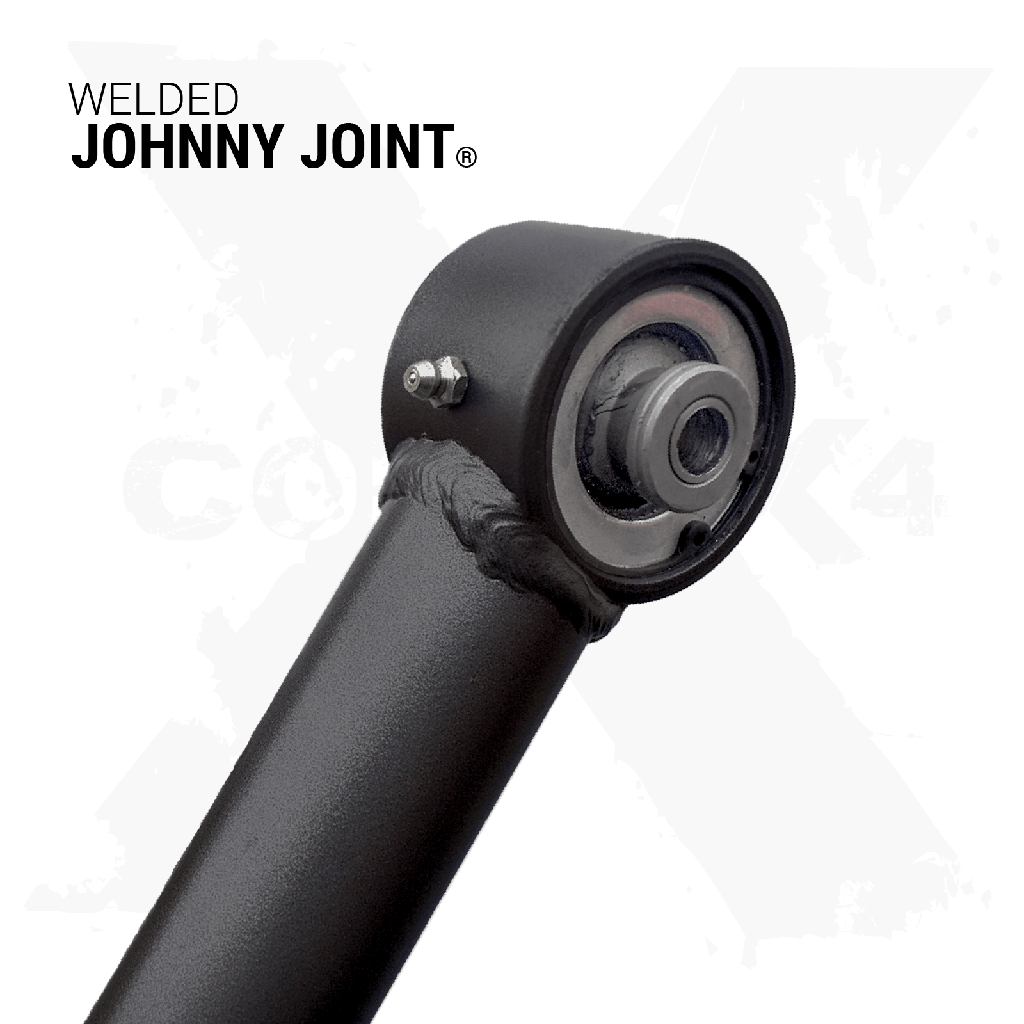

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

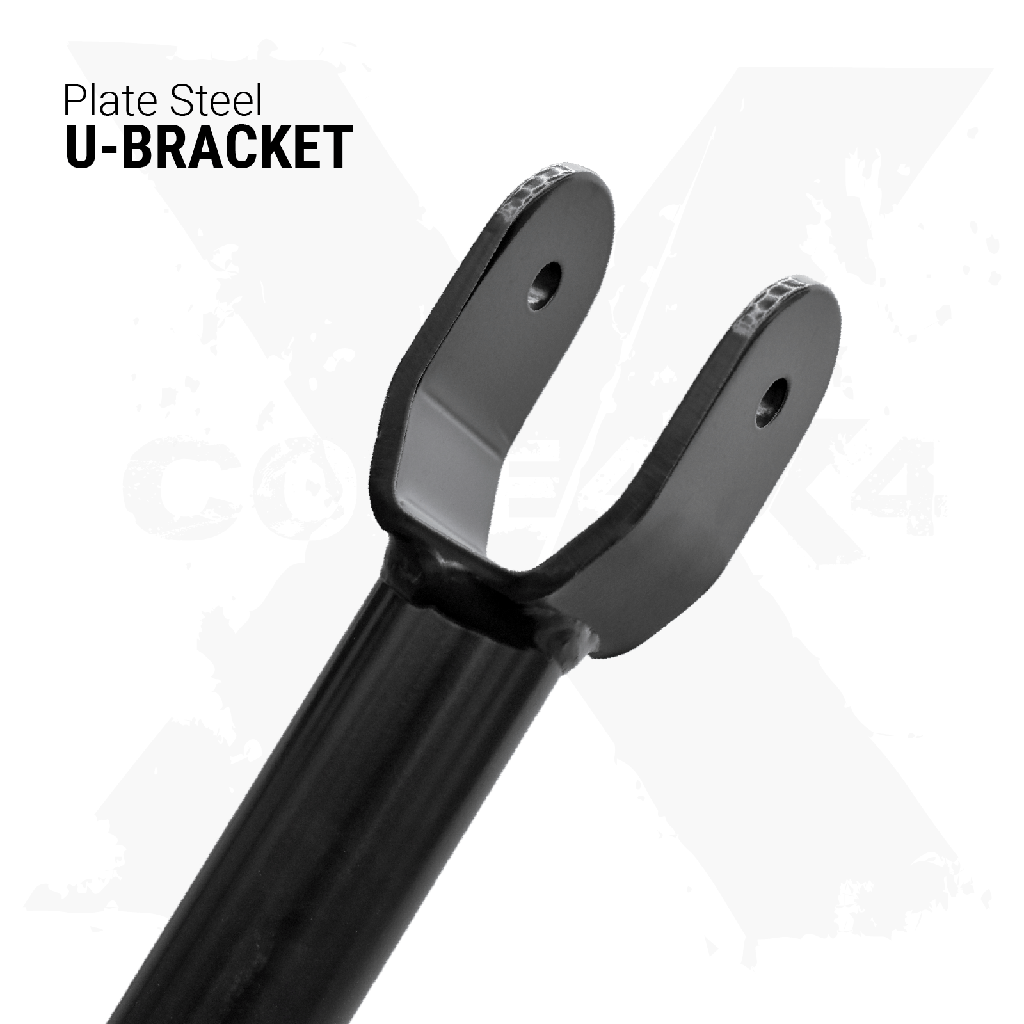

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Front End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

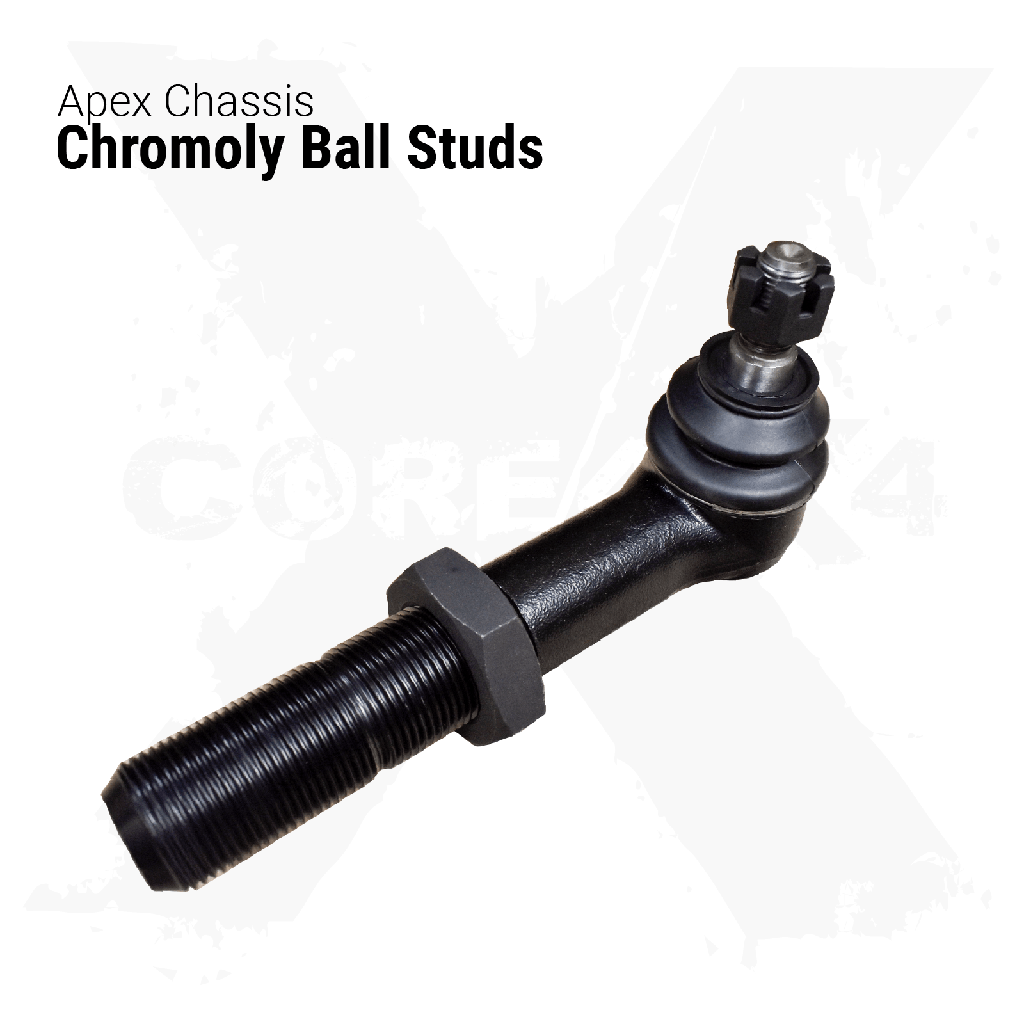

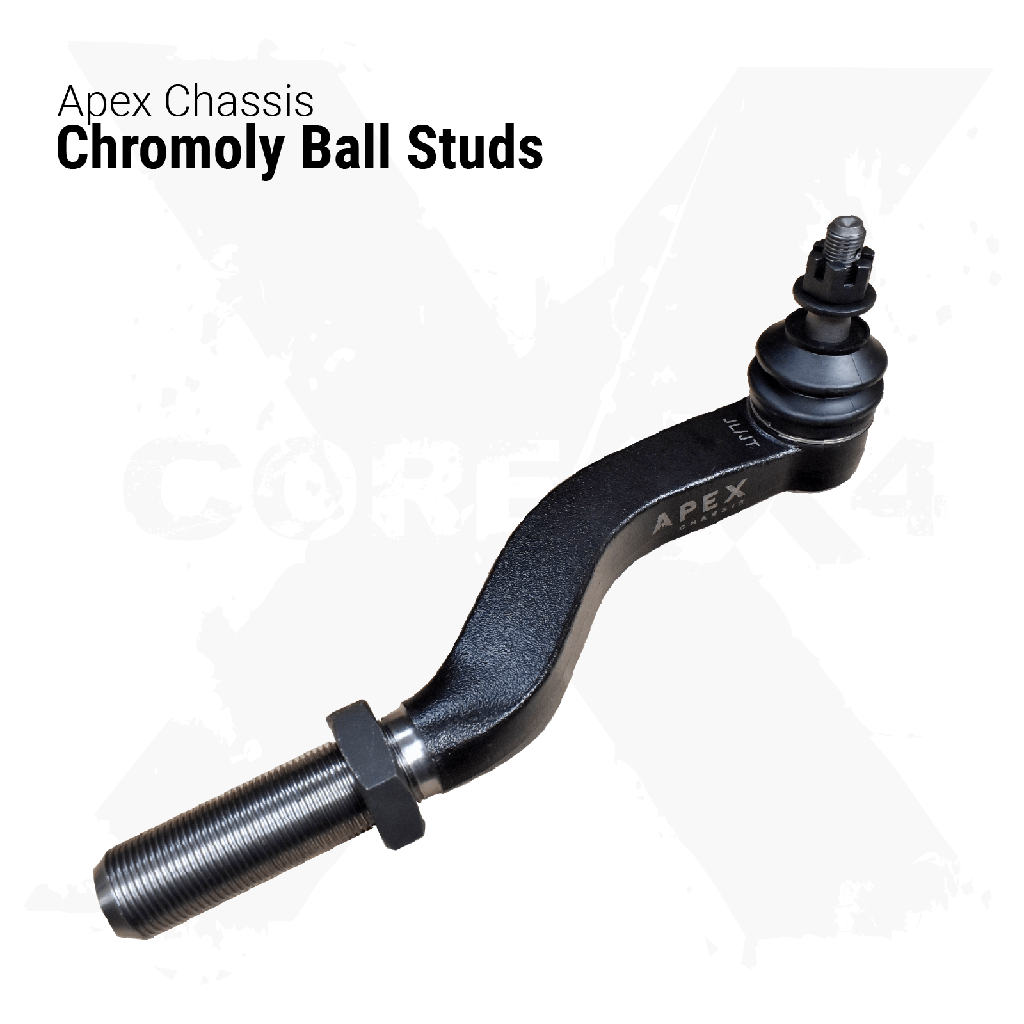

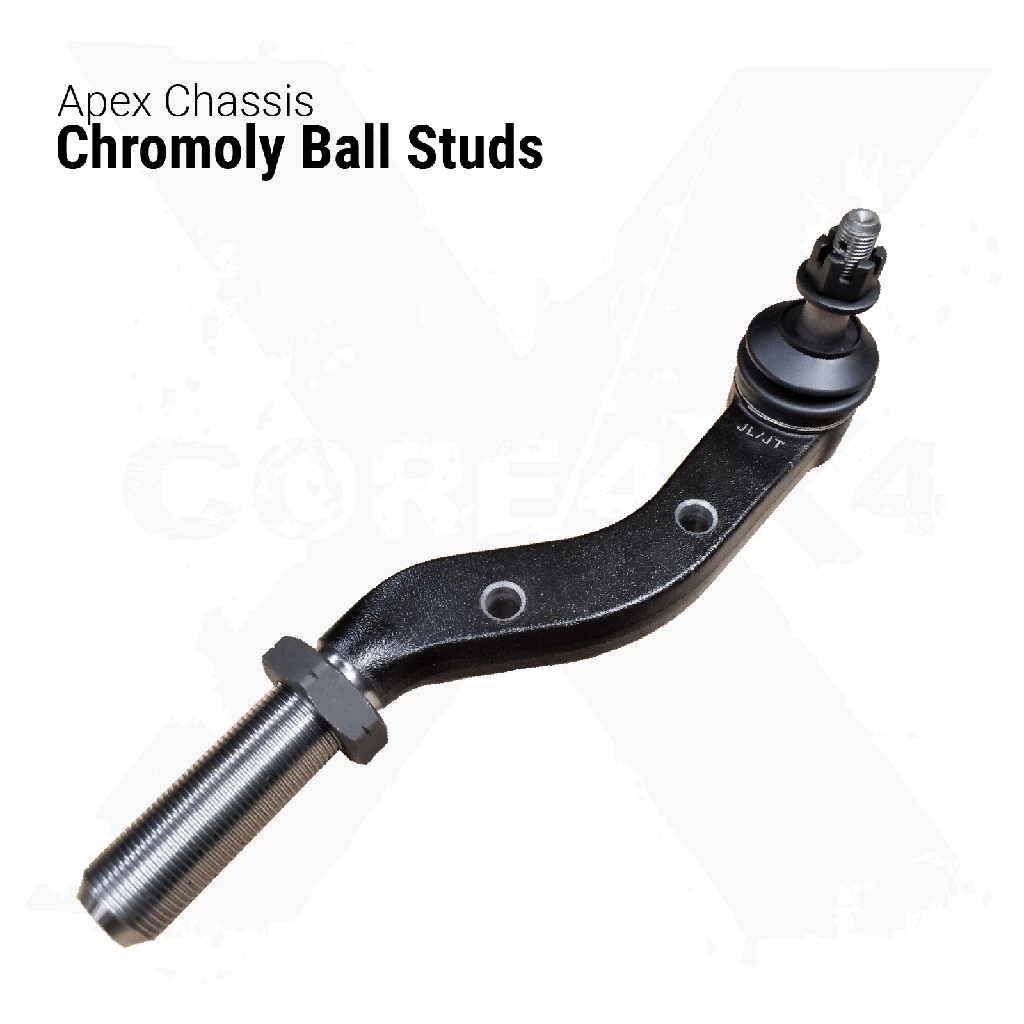

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2018 - Present

Construction & Materials

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Front Fixed Length End Links

Front End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Rear Fixed Length End Links

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JL / JLU 18+ 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JL / JLU 18+ Crawl Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JL / JLU 18+ Crawl Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JL / JLU (18–Present)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
