12pc Cruise Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CRS-J-JK-K12 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 1,874.21 1874.21 USD $ 2,498.95

$ 2,498.95

Save 25% · $ 624.74 off

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
100% bolt-on no welding MADE IN USA · Orem, Utah Expert Support 100K+ Community
Free mounting hardware included — a $100 value
Drag Link Orientation
Stabilizer Clamp
1
CRUISE

"Daily Confidence" — Daily driver, light trails

We also build Camp, Crawl Compare Series
CRUISE You're here CAMP +$310 CRAWL +$759 See full comparison →
Joints Flex Polyurethane
Tubing 1.875" OD lowers / 1.625" OD uppers 3/16" wall DOM
COLOR Pick yours
https://jerdev.core4x4.com/web/image/product.template/1699/image_1920?unique=982bc5a

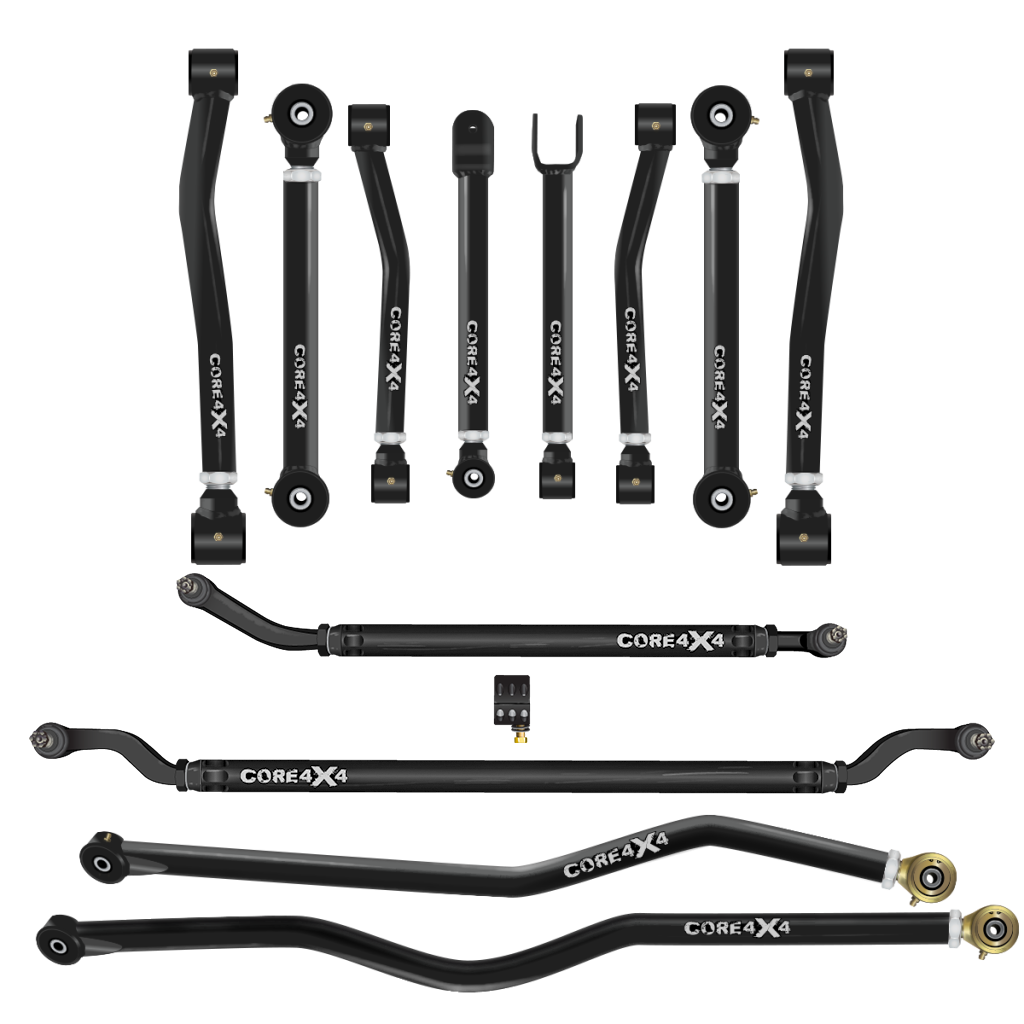

12pc Cruise Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CRS-J-JK-K12
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 1,874.21 1874.21 USD $ 2,498.95

$ 2,498.95

Save 25% · $ 624.74 off

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.

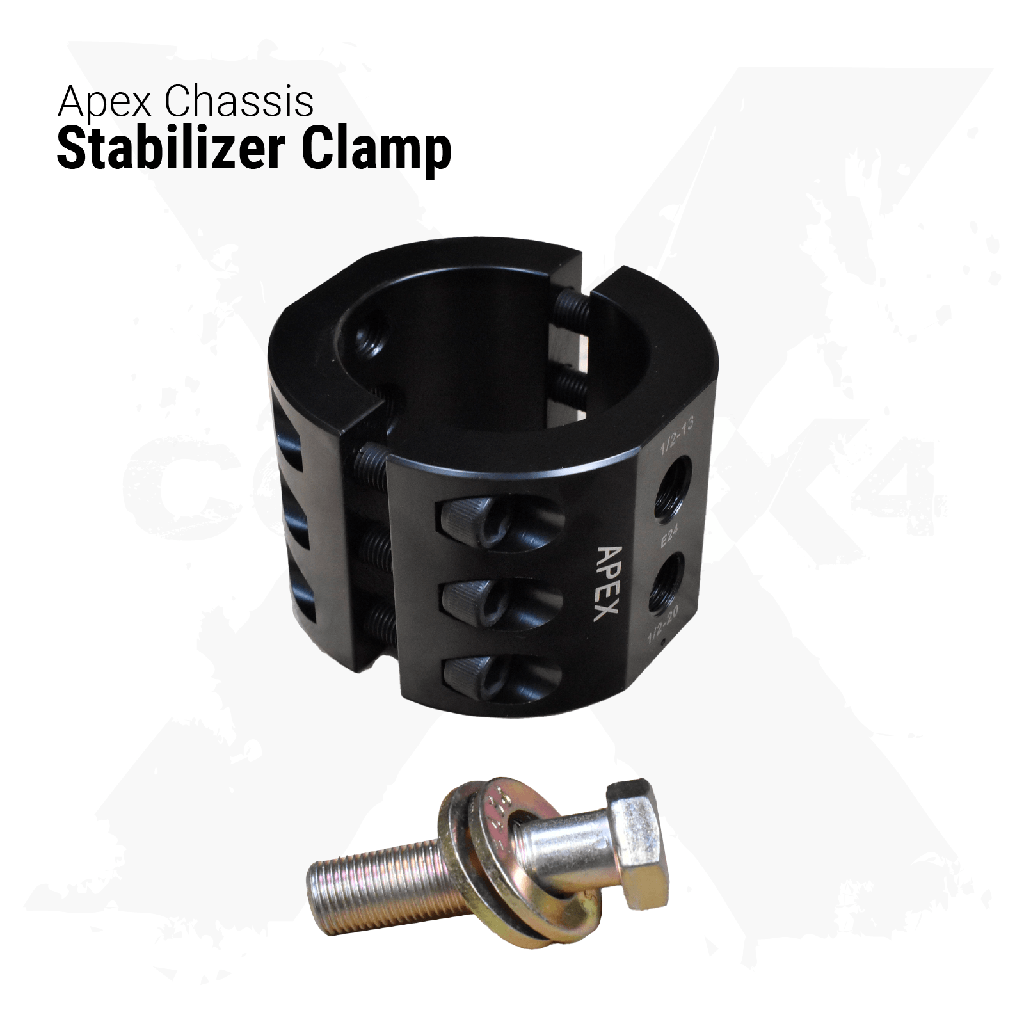

  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Free mounting hardware included — a $100 value

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Complete Suspension and Steering Control

Upgrade your Jeep Wrangler JK (2007-2018) with the Cruise Series 12-Piece Kit, the ultimate solution for improving stability, steering precision, and overall suspension performance. Engineered to correct common drivability issues—including caster loss, wandering, following ruts in the road, and even reducing death wobble—this kit replaces worn-out factory components with high-strength, fully adjustable upgrades. Whether you’re navigating city streets or tackling off-road terrain, this all-in-one package provides maximum control, durability, and alignment correction.

Key Features and Benefits

  • Precision alignment caster correction – Regains lost caster for improved steering control, reducing wandering and instability after lifting your Jeep.
  • Axle re-centering death wobble reduction – Adjustable track bars re-center axles, improving suspension geometry and minimizing bump steer, which can help reduce or eliminate death wobble.
  • Heavy-duty steering upgrade – The 2.5-ton aluminum steering kit enhances handling and durability for confident control on and off-road.
  • Recommended pairing – Pair this kit with the Cruise Series End Link Set (CRS-J-JK-ELS4) for a fully optimized suspension system that enhances stability and reduces body roll.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Easy Installation

Designed for straightforward installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or stubborn bolts.


  • Vehicle Fitment: Jeep Wrangler JK 07-18 – Complete suspension and steering overhaul designed to restore alignment, enhance handling, and eliminate common drivability issues.

  • CORE Advantage: Replaces all eight control arms, both track bars, and upgrades the steering system with a 2.5-ton aluminum kit, delivering unmatched stability, control, and durability.

  • Adjustability: Accommodates 0 to 6 inches of lift, allowing precise caster correction, axle centering, and pinion angle adjustments for optimized handling and steering performance.

  • Construction: Heavy-duty steel tubing, high-strength track bars, and an upgraded steering system to eliminate weak factory components and improve ride quality.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Front Upper control arms built with 1.625” OD 3/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Rear Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Rear Upper control arms built with 1.625” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1” x 14 TPI - 3.25” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Wrangler 2007 - 2018

Construction & Materials

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Lower Adjustable Control Arms

Front Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Upper Adjustable Control Arms

Front Upper control arms built with 1.625” OD 3/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Lower Adjustable Control Arms

Rear Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.625” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1” x 14 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

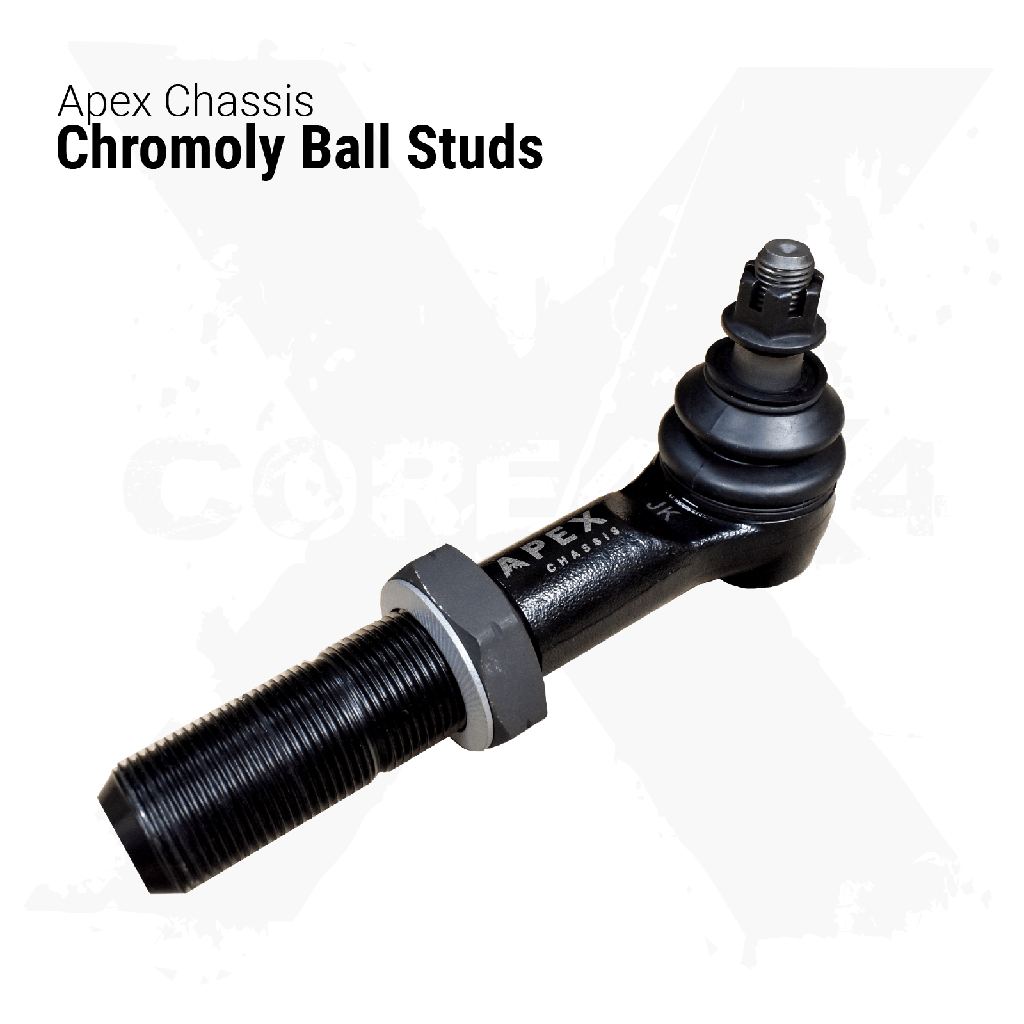

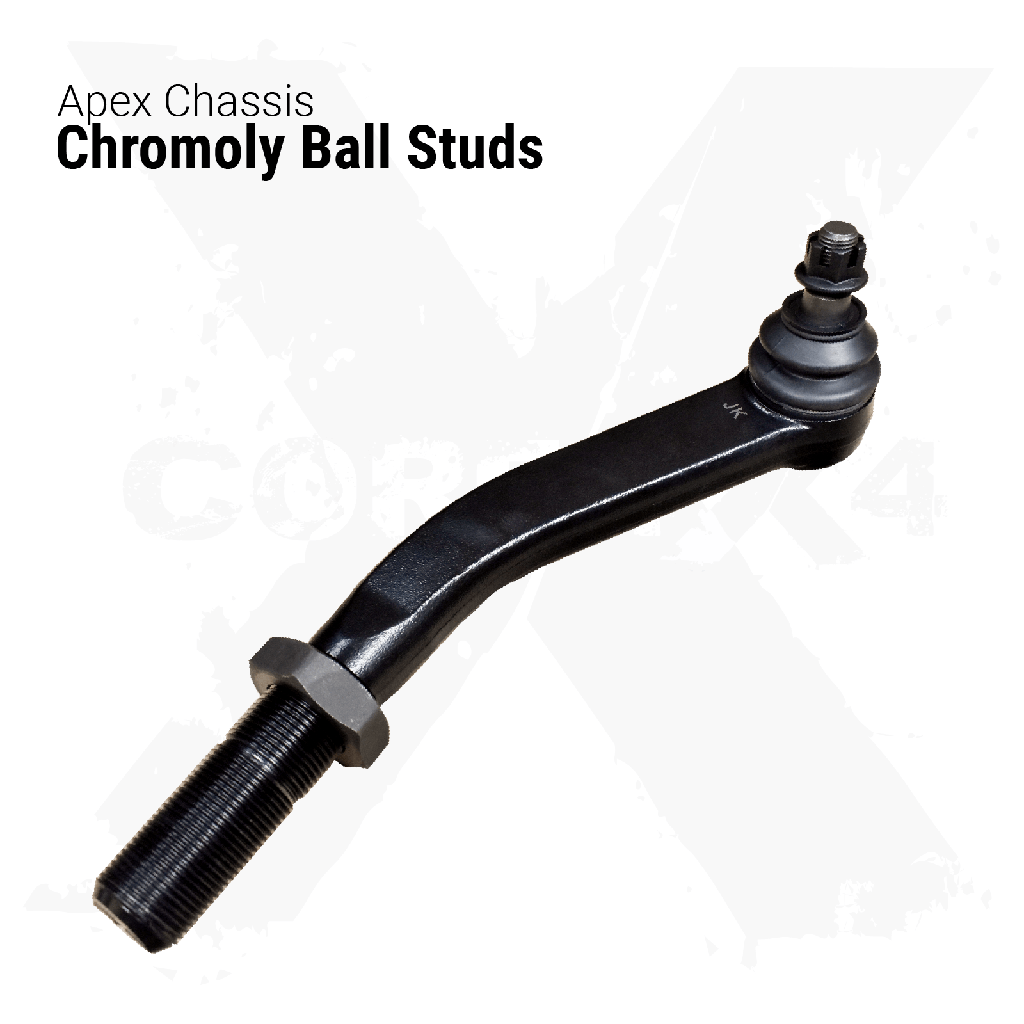

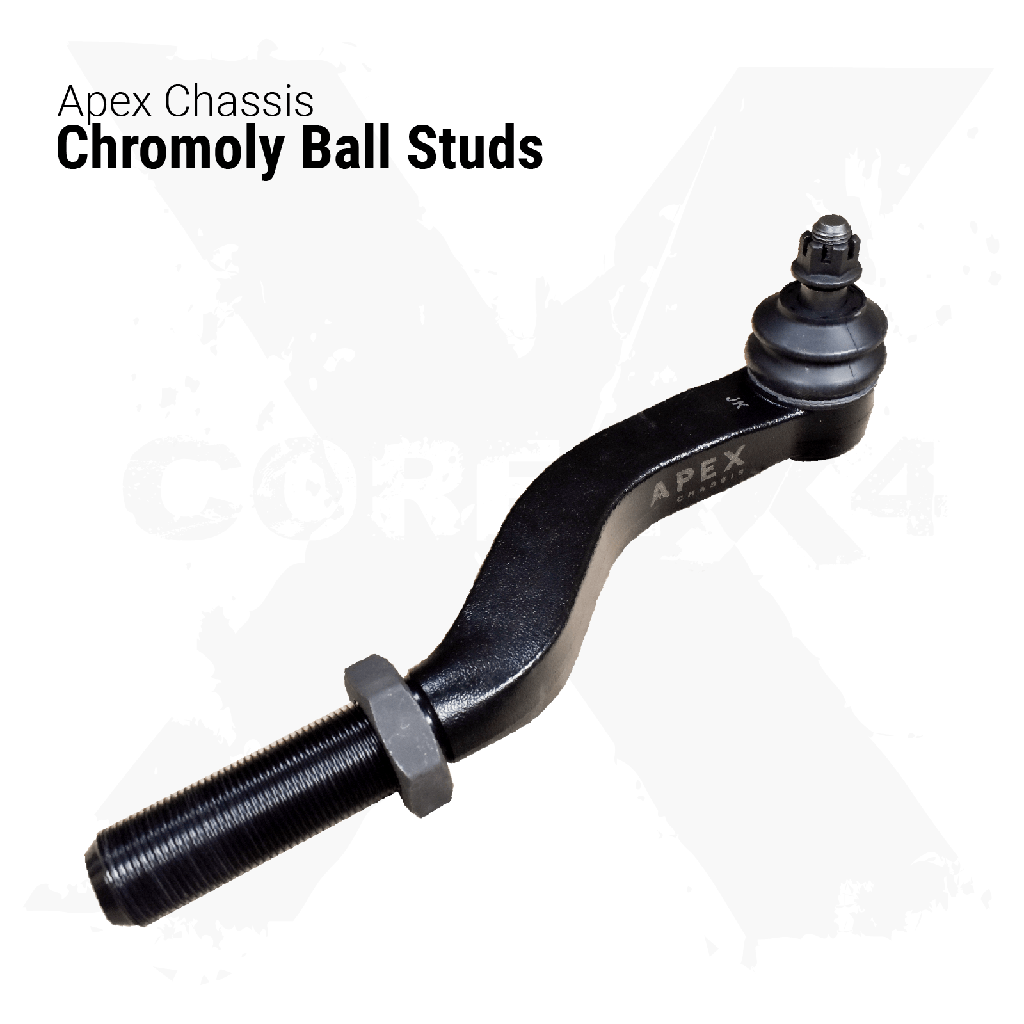

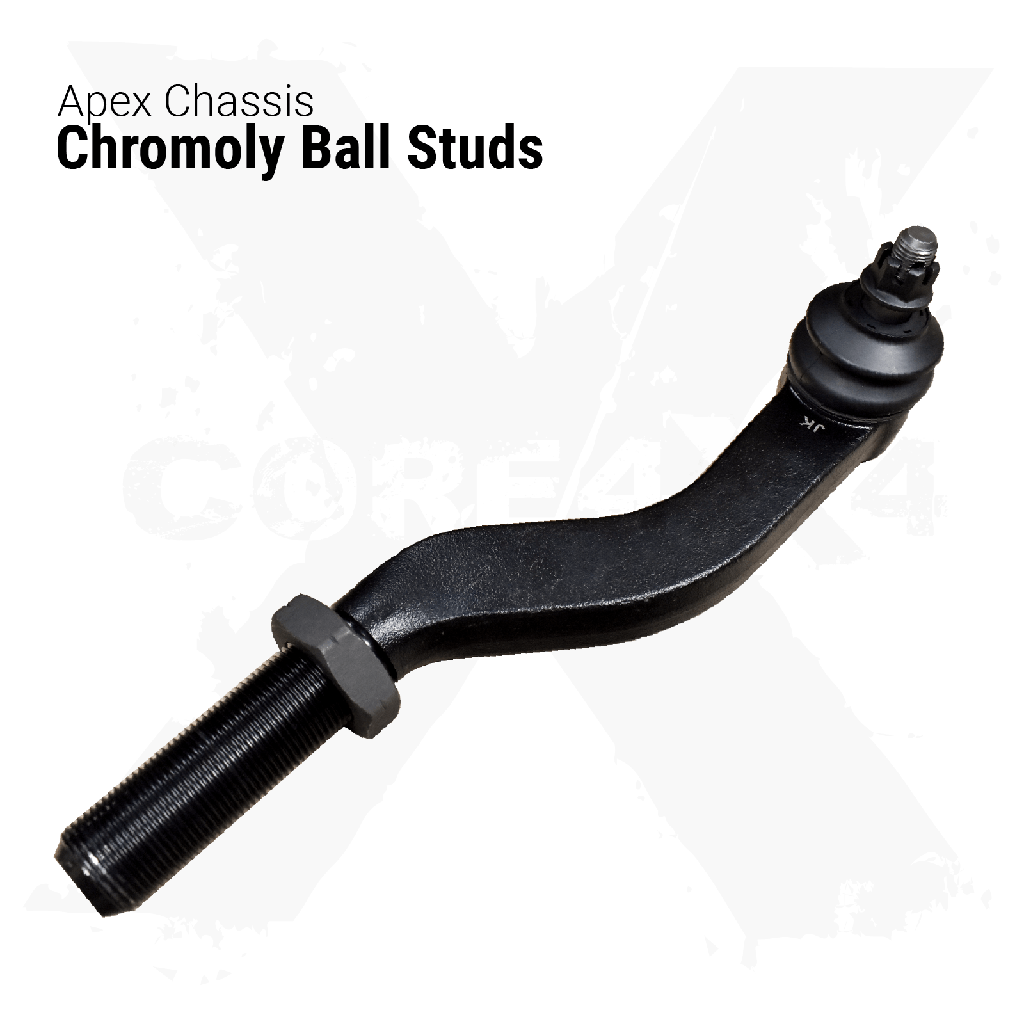

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JK / JKU 07-18 Cruise Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 Cruise Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Cruise Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On
