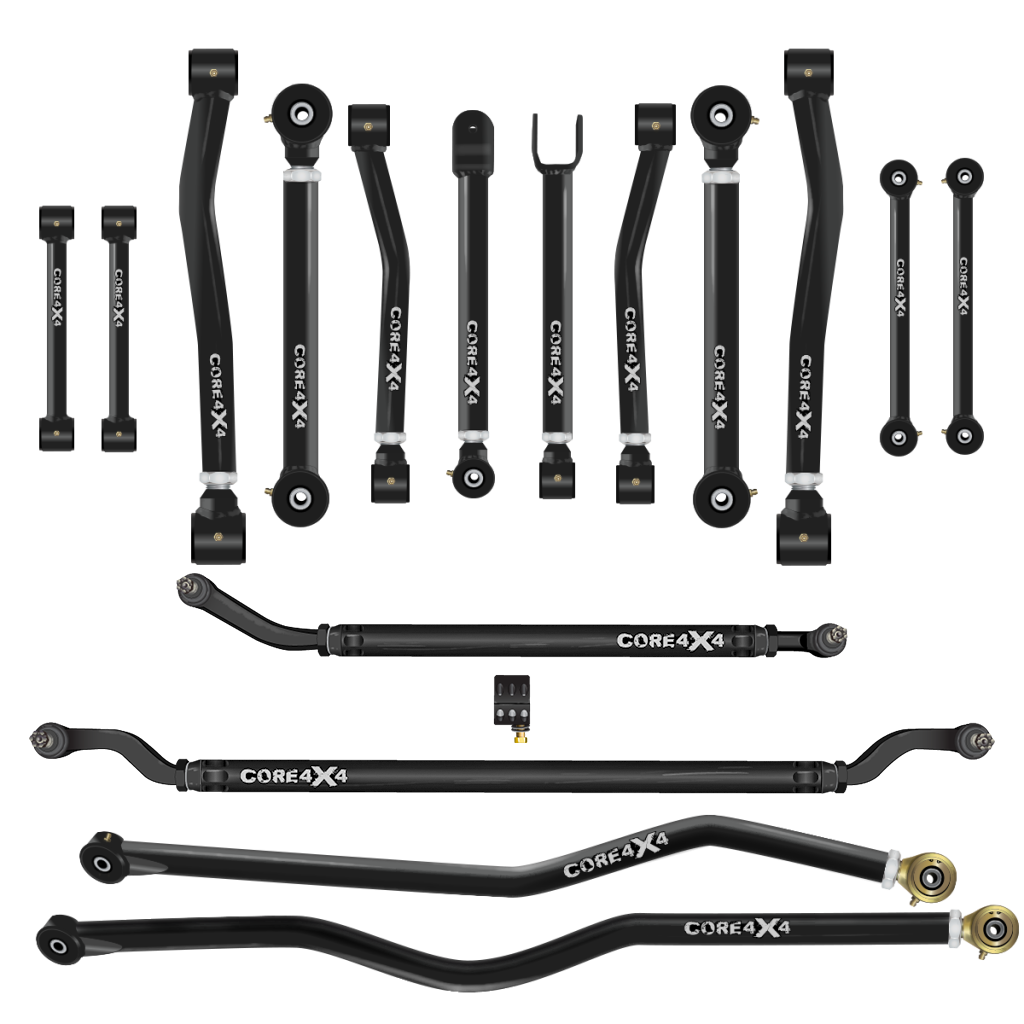

16pc Cruise Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CRS-J-JK-K16 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,086.84 2086.84 USD $ 2,782.45

$ 2,782.45

Save 25% · $ 695.61 off

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
100% bolt-on no welding MADE IN USA · Orem, Utah Expert Support 100K+ Community
Free mounting hardware included — a $100 value
Drag Link Orientation
Stabilizer Clamp
1
CRUISE

"Daily Confidence" — Daily driver, light trails

We also build Camp, Crawl Compare Series
CRUISE You're here CAMP +$391 CRAWL +$992 See full comparison →
Joints Flex Polyurethane
Tubing 1.875" OD lowers / 1.625" OD uppers 3/16" wall DOM
COLOR Pick yours
https://jerdev.core4x4.com/web/image/product.template/1602/image_1920?unique=982bc5a

16pc Cruise Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CRS-J-JK-K16
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,086.84 2086.84 USD $ 2,782.45

$ 2,782.45

Save 25% · $ 695.61 off

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.
  • Stabilizer Clamp

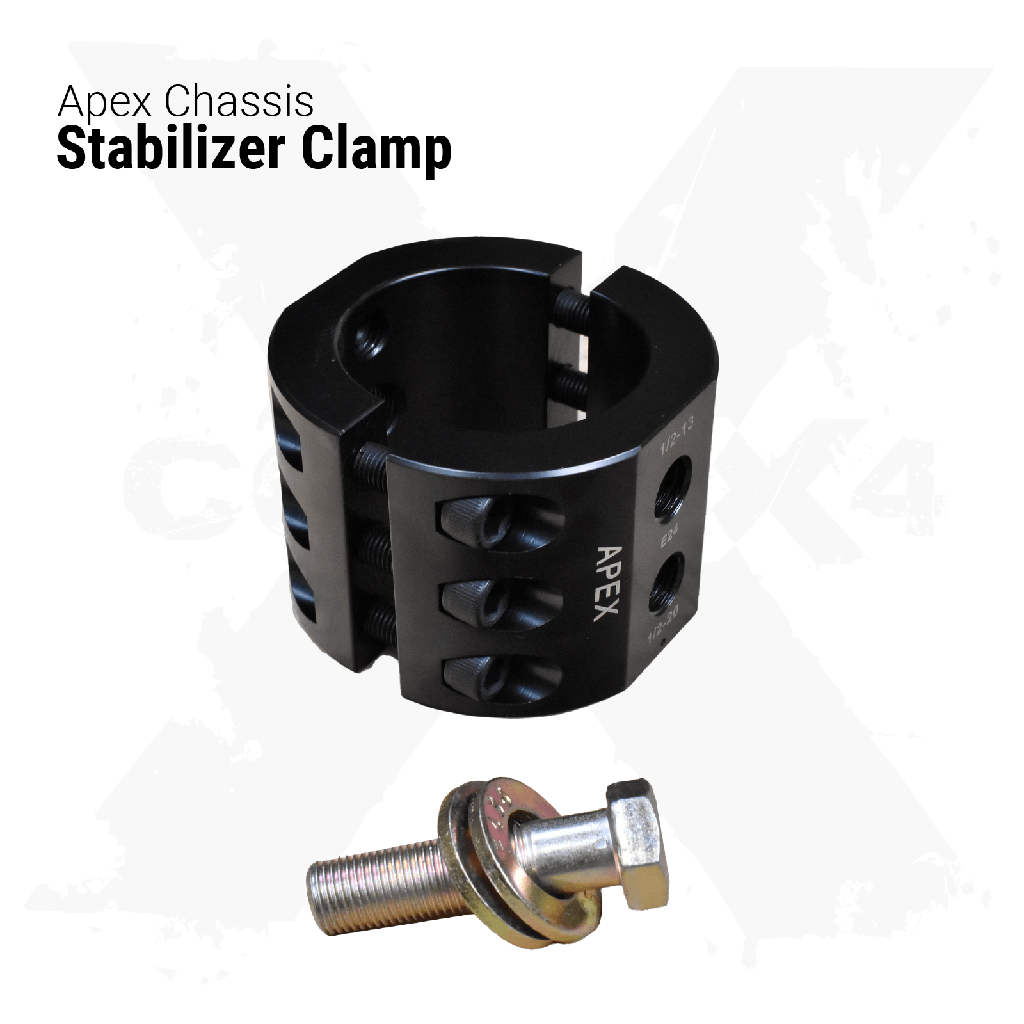

    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Free mounting hardware included — a $100 value

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Solve Every Suspension Steering Issue with This Complete Upgrade

The Jeep Wrangler JK is an exceptional off-road platform, but its factory suspension system has well-documented weaknesses—including insufficient caster, wandering steering, following ruts in the road, and the dreaded death wobble. The Cruise Series 16-Piece Kit is designed to eliminate these issues entirely by replacing every major suspension and steering component with heavy-duty, fully adjustable upgrades that enhance handling, control, and overall drivability.

This all-inclusive kit provides everything needed to correct alignment, recenter axles, and optimize suspension geometry for lifts from 0 to 6 inches. Whether you’re daily driving or tackling the toughest trails, this kit delivers unmatched stability, precision, and durability.

Key Features and Benefits

  • Eliminates common JK suspension issues – Corrects insufficient caster, eliminates wandering, prevents following ruts in the road, and significantly reduces or eliminates death wobble.
  • Complete suspension steering overhaul – Replaces all major suspension and steering components with fully adjustable upgrades for precise alignment and axle positioning.
  • Adjustable for lifted vehicles – Control arms and track bars adjust to accommodate lifts from 0 to 6 inches, allowing for fine-tuned caster correction, axle centering, and suspension geometry optimization.
  • Build your own lift kit – Simply pair this kit with your preferred springs and shocks to create a custom lift kit that outperforms any off-the-shelf solution.
  • Ultimate steering precision stability – The 2.5-ton aluminum steering kit provides improved handling, eliminates play in the steering system, and enhances overall driving confidence.

Two-Stage Powder Coating for Maximum Protection

All components undergo a two-stage powder coating process for enhanced durability and corrosion resistance:

  • Zinc primer base coat for rust prevention and long-lasting protection.
  • Durable top coat available in 10 color options for personalized customization.

Proudly Made in the USA

Manufactured in Orem, UT, the Cruise Series 16-Piece Kit is built with American craftsmanship and locally sourced materials, ensuring the highest quality standards in every component.

Effortless Installation

Designed for a hassle-free, bolt-on installation using factory hardware. For those dealing with rusted or stubborn bolts, we offer optional Grade 8 hardware kits separately for a smoother setup.


  • Vehicle Fitment: Jeep Wrangler JK 07-18 – The most complete suspension and steering upgrade available, solving common JK issues like wandering steering, death wobble, and poor alignment.

  • CORE Advantage: Replaces every major suspension and steering component with fully adjustable heavy-duty upgrades, delivering precision handling, improved axle positioning, and total control.

  • Adjustability: Designed for 0 to 6 inches of lift, allowing precise caster correction, axle re-centering, and optimized suspension geometry for a smoother, more predictable ride.

  • Construction: Heavy-duty steel control arms, reinforced track bars, premium sway bar end links, and a 2.5-ton aluminum steering kit to eliminate factory weaknesses and enhance durability.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

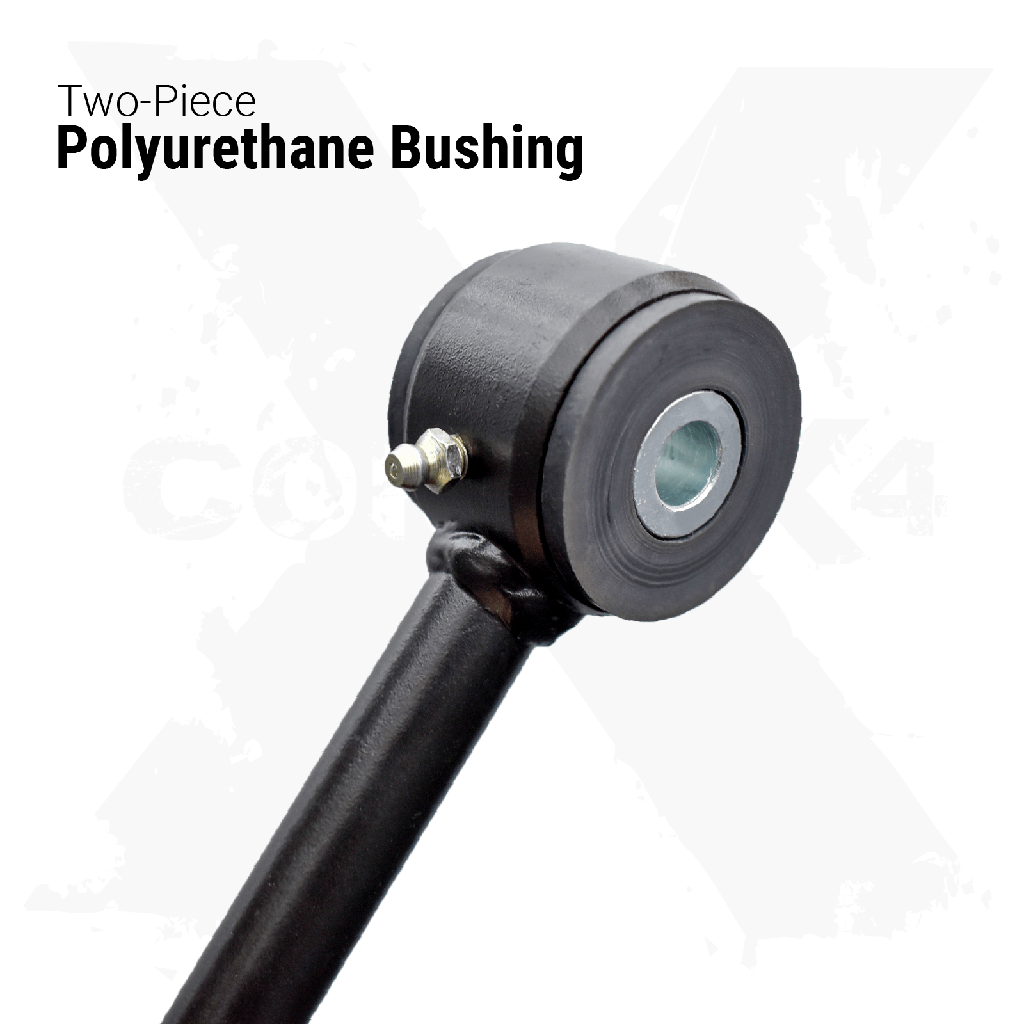

Front Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Front Upper control arms built with 1.625” OD 3/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Rear Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Rear Upper control arms built with 1.625” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1” x 14 TPI - 3.25” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Front End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

Rear End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

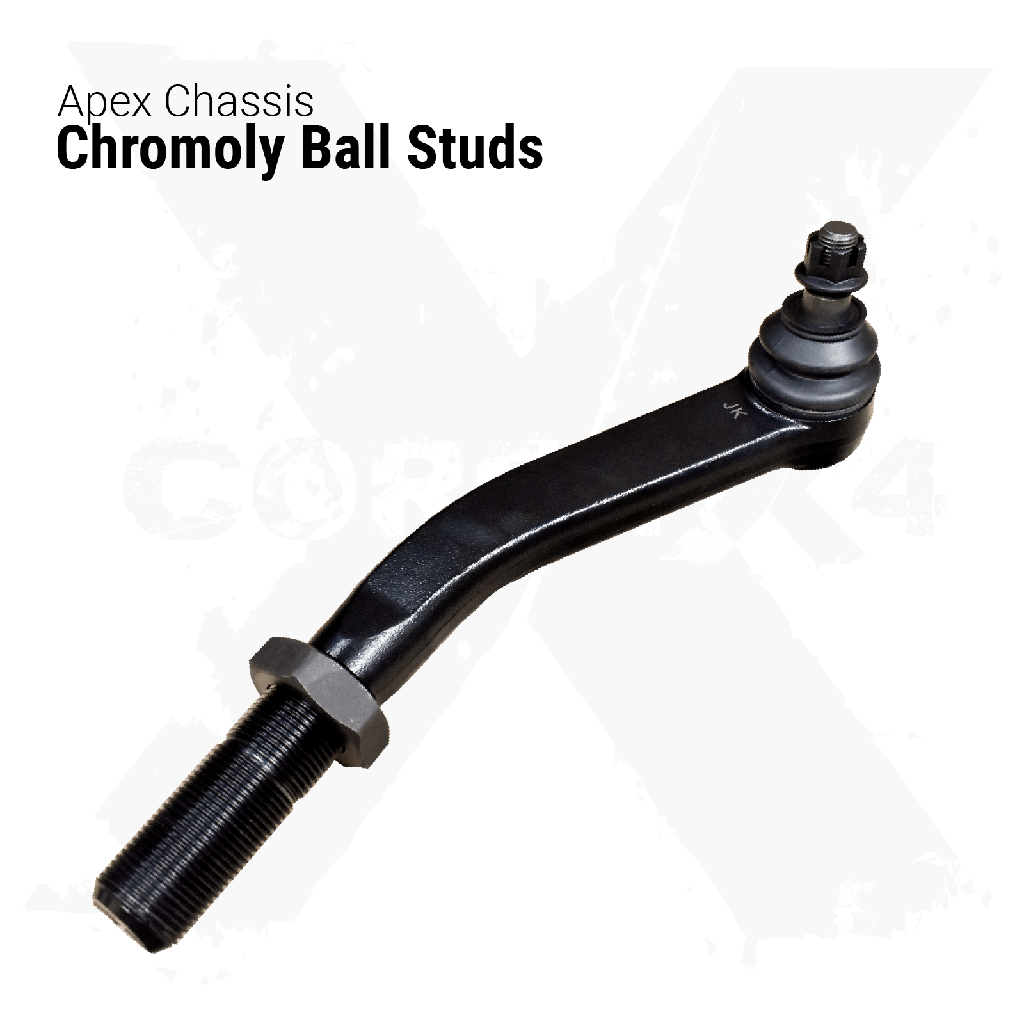

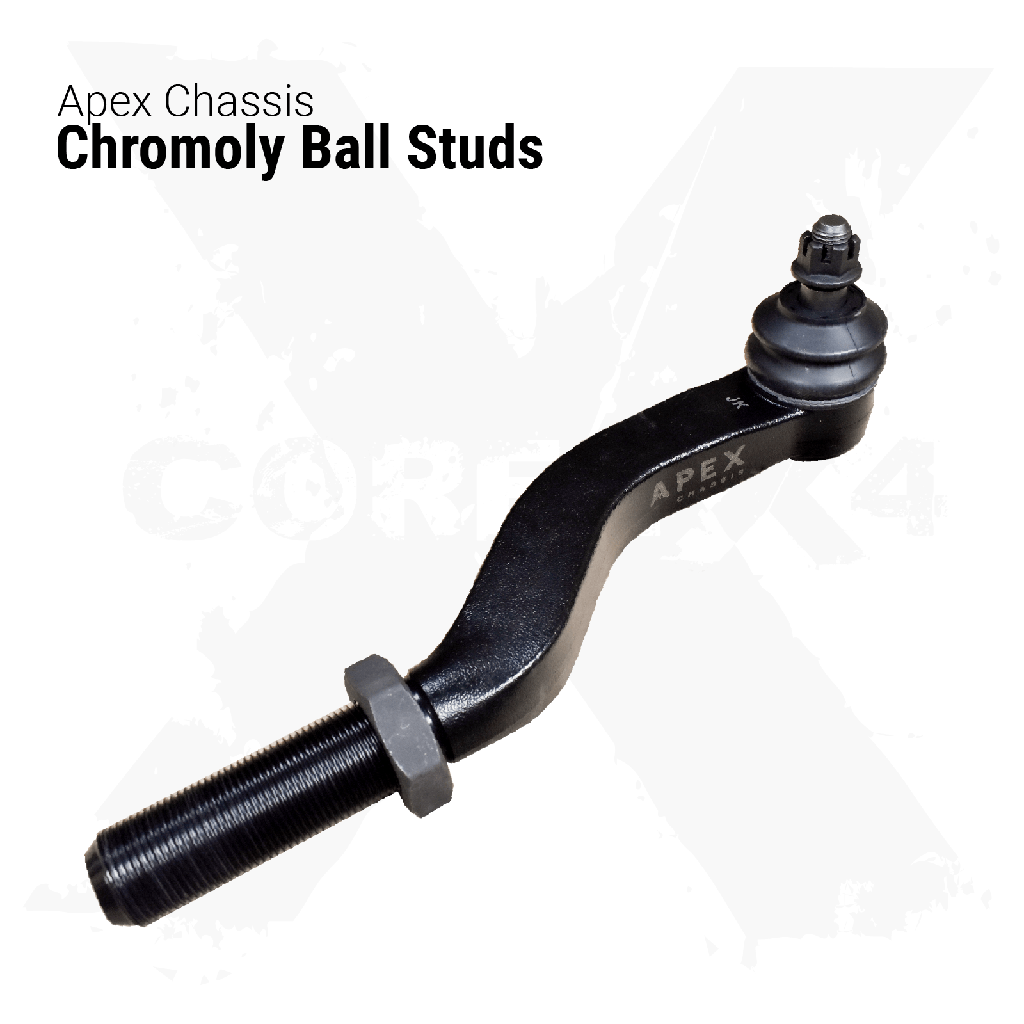

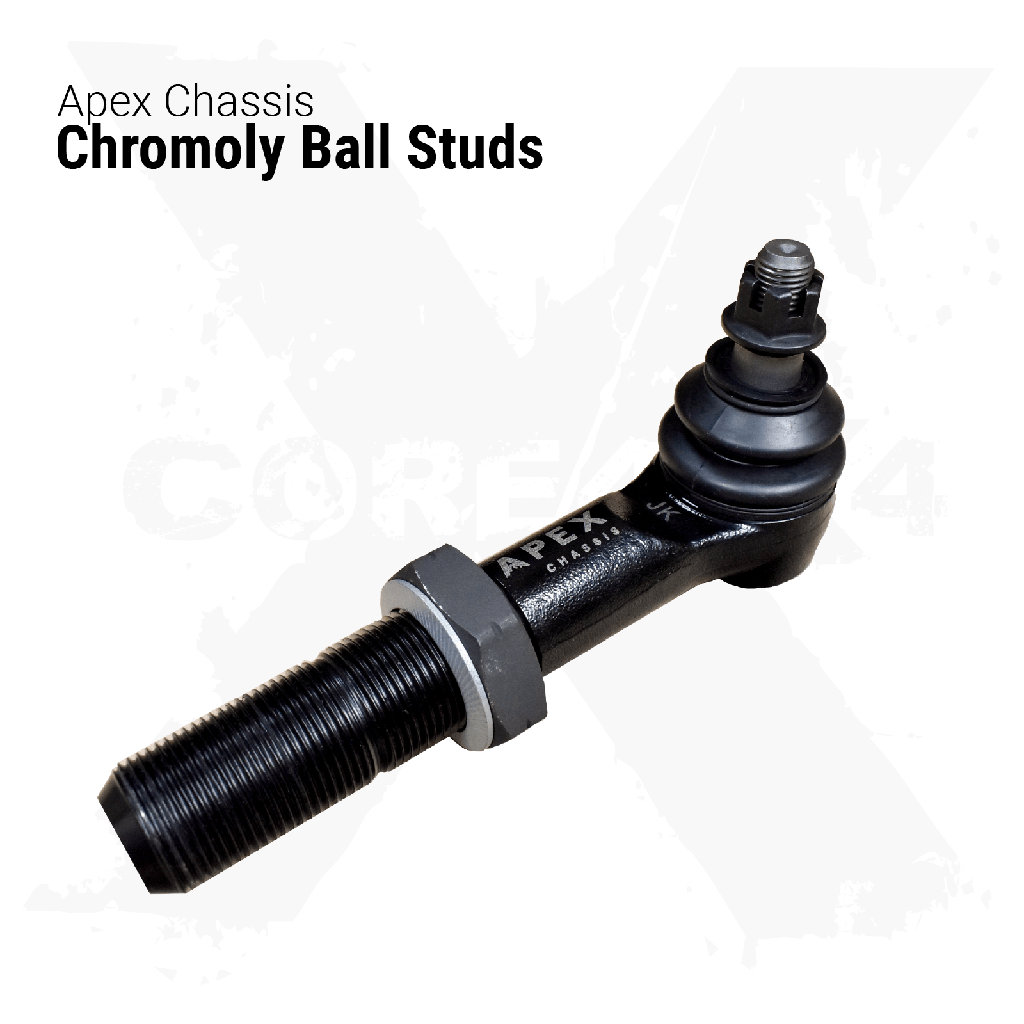

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2007 - 2018

Construction & Materials

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Fixed Length End Links

Front End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Lower Adjustable Control Arms

Front Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Front Upper Adjustable Control Arms

Front Upper control arms built with 1.625” OD 3/16” Wall DOM. Welded U-bracket on the fixed end and a Polyurethane Bushing on the adjustable end with 1” x 14 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Fixed Length End Links

Rear End Links built with .75” Cold Rolled Steel. Polyurethane Bushings on both fixed ends.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Lower Adjustable Control Arms

Rear Lower control arms built with 1.875” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1.25” x 12 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Cruise Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.625” OD 3/16” Wall DOM. Polyurethane Bushings on the fixed and adjustable ends with 1” x 14 TPI - 3.25” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JK / JKU 07-18 Cruise Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 Cruise Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Cruise Series
Lift Size Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
JJ
JT JT Dec 23, 2025
★ ★ ★ ★ ★ Google
We have all shopped places where the person on the phone makes you feel like they don't have the time to talk to you the customer or answer your questions. I can tell you first hand that's not Core 4x4. They have the best customer service I have seen so far. They have taken the time to respond to all of my questions in a very prompt and professional manner, taking the time to answer each and every question I have had. Lets put it this way if Core 4x4 sells a product I am wanting for my truck I will buy it from them, I highly recommend Core 4x4.
DD
Dmitriy D May 27, 2025
★ ★ ★ ★ ★ Google
Installed rear and upper control arms and track bar on my 3rd Gen 4RUNNER to align rear axle and restore factory wheel base after 3.5" lift. Car drives better than New! Improved handling cornering and overall driving. Very solid and high quality made product. Support is outstanding. Shipping extremely fast. Thank you so much. I wish you will have something new for my car.
Review photo 1
N
niceguyr1 Mar 24, 2023
★ ★ ★ ★ ★ Google
I purchased upper and lower adjustable arms for my WJ and lowers were missing the spacers. I didn't know until 3 months later when I was installing them. With absolutely zero hassles they quickly sent me the missing spacers. Fantastic product and service! Huge thank you guys for the awesome service and parts!!! Customer service is quickly becoming a lost commodity and you guys gave me hope that it's still alive and well, you just have to buy from the right people... Thanks again for going above and beyond! 👍👍
ST
Sal Torres May 27, 2025
★ ★ ★ ★ ★ Google
upper control arms look great and went on easy.. only reason I gave 4 stars and not 5 is because of a shipping issue which put my build a week behind. The issue was resolved quickly and painlessly, great customer service. Only time will tell how control arms perform but they look great and like they will go above and beyond control arm demand.
VK
Victor Keele Sep 24, 2025
★ ★ ★ ★ ★ Google
Great customer service. I got my front upper and lower control arms and hardware on Friday afternoon. It didn’t come with instructions so I called Core 4X4 and they immediately e mailed me the instructions. Also, the kit I got had the spacers missing so I called. It was late Friday by thus time but they took care of the issue first thing Monday morning and I got the spacers on Tuesday. Great company.
Review photo 1 Review photo 2
RH
Rex Hodges Jun 26, 2025
★ ★ ★ ★ ★ Google
After ordering an upper and lower adjustable control arm kit manufactured by CORE 4X4 from a jeep parts distributor who's intials are E.T., they came with 3 of the threaded ends missing. After over 2 months of phone calls and emails to this E.T. company nothing was resolved. I finally decided to call CORE 4X4 myself and tell them my dilemma. I spoke with a very personable and professional gentleman named Korby, who is one of CORE 4X4's representatives, after a brief discussion of what I went thru he simply asked me for a picture and some measurements and the items I was missing and asked if I could cover ONLY the cost of shipping and I had my missing parts in exactly 1 weeks time. This company not only builds all it's parts in the U.S.A., they stand behind their products with great customer service and life time warranty. My experience with this company and their Rep Korby was fantastic. I would definitely recommend CORE 4X4 to anyone who needs parts for any 4x4 projects. You just can't beat their quality and service. Rex Hodges Valparaiso, Indiana
ZA
Zen Asher Mar 23, 2025
★ ★ ★ ★ ★ Google
The quality and durability of the arms are the best. They are super heavy duty. And lifetime warranty is crazy
TM
T Mac Mar 23, 2026
★ ★ ★ ★ ★ Google
CORE 4X4 Company produces/manufactures exceptional products. My rear upper and lower control arms and rear track bar were powder coated custom Fox “Shock Orange” for my 2024 Bronco Wildtrak. OEM looks minimal compared to the CORE 4X4 control arms. Plus they’re adjustable, serviceable and rebuildable. Shipment was very fast and packaging used custom foam wrapped around the arms and heavy duty boxes. Not even UPS could damage. Korby L. was great to work with and responded quickly with emails and product information. Great products. Great people from the State of Utah. All Made in the USA. 5 Stars!!!
JT
jacob trice Apr 27, 2025
★ ★ ★ ★ ★ Google
Core 4x4 has outstanding products at a fair price and unmatched customer service. When you call Korby, it's like talking with a friend. Very cool and helpul! I ordered some custom control arms, but from the wrong product line and they were super cool about returning them and upgrading to a better "Crawl" series. Only charged the difference between the two products. They paid all the return shipping and sent the uprgaded arms super quick. It was only a couple days. Awesome!! I couldn't be happier with the transaction👍🏼 Also, these control arms are stout and take a beating. I run heck out my Jeep in the rocks and desert. No problems whatsoever. Thanks Core 4x4, ya'll are welcome at my campfire anytime! Jake T. Pleasant Hill, Or.
JO
Jaime Overmyer Nov 23, 2025
★ ★ ★ ★ ★ Google
Korby was extremely helpful in helping me find the right part for my truck. He was kind, knowledgeable, and patient while I asked a million questions. He also went out of his way to find the right shipping option for me since it’s tricky where I live. I’m looking forward to getting the parts so I can fix my truck and go adventuring again soon!

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size Stock Height, Lifted 1", Lifted 2", Lifted 3", Lifted 4", Lifted 5", Lifted 6", Lifted 7", Lifted 8", Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware, Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle), Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp, Hydraulic Assist Clamp
Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Series Cruise Series
Note to Core4x4: -
